Openable API Adaptor

Name: Openable API Adaptor
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: HYF-01, HYF-02
Price: 115.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CE

Model Number: HYF-01, HYF-02

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Hard Carton

Delivery Time: 7-15 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Openable API Adaptor, Oil tanker cargo manifold adaptor, API adaptor for oil tankers


Product:	API Adaptor	Size:	4"
Material:	Aluminum Alloy	Application:	Diesel, Gasoline, Kersene

Product:	API Adaptor
Size:	4"
Material:	Aluminum Alloy
Application:	Diesel, Gasoline, Kersene

Description

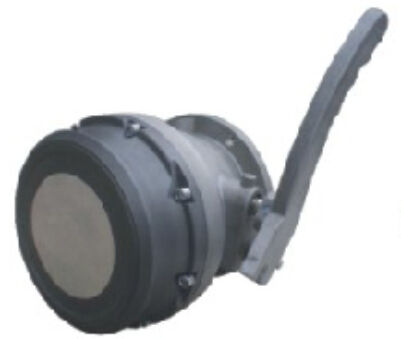

Openable API Adaptor

Description

HYF series API Adaptor is installed on one side of the tanker bottom for quick unloading. When loading the fuel, it connects with API adaptor coupler tightly,

When unloading the fuel, two-stage fixed handle control the flow rate and side pull effectively.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Hydrodynamic design minimizes the pressure drop for high flow rate.
Light weight, die cast aluminum construction for increased payloads with strength.
Two-stage fixed aluminum handle positively indicates valve position.
Stainless steel operation shaft, cam & poppet stem for durability.
The sight glass can be check easily by operator
Top mounting for puneumatic interlock valve
According to API 1004 and EN13083 standard, flange meets the TTMA standard.

Material

Body: Aluminum alloy

Shaft: Stainless Steel

Spring: Stainless Steel

Bushing: Copper

Seal: NBR

Handle: Aluminum

Technical Specification
Model	HYF-01	HYF-02
Size	4"
Working pressure	0.6 Mpa
Max. flow rate	2500L/Min
Air pressure required	0.4-0.8 Mpa
Temperature range	-20~70℃
Connection mode	Flange
Operating mode	Mechanical Fork	Mechanical Rack
Medium	Diesel, Gasoline, Kersene
