Home / Products /

API Bottom Loading Coupler

Name: API Bottom Loading Coupler
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ809, YJ810
Price: 115.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CE

Model Number: YJ809, YJ810

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Delivery Time: 7-15 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    API Bottom Loading Coupler, API coupling for liquid cargo transfer, Bottom loading coupler for tank trucks


Product:	API Bottom Loading Coupler	Size:	4"
Material:	Aluminum	Application:	Diesel, Gasoline, Kersene

Product:	API Bottom Loading Coupler
Size:	4"
Material:	Aluminum
Application:	Diesel, Gasoline, Kersene

Description

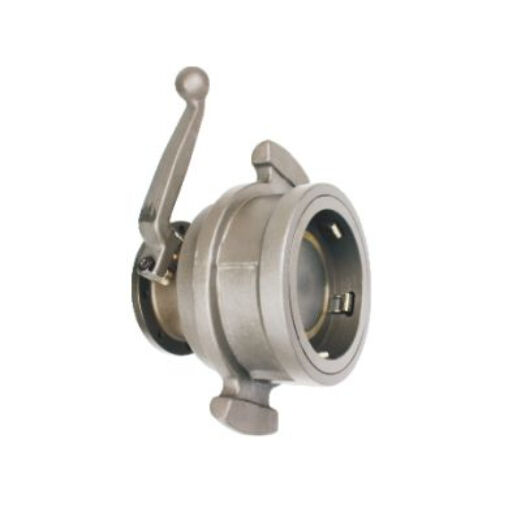

API Bottom Loading Coupler

Description

API bottom loading coupler can connect with all 4 inch bottom loading adaptors in accordance with API RP 1004 standard

to reduce liquid loss when disconneted. It can effectively transport various fuels with high performance seals and excellent abrasive

resistance and oil resisstance.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
It only opens when connecting with API adaptor correctly and locked
Ensures esay and accurate docking, maintaining tight connection with API male coupler to prevent side pull while loading
Simple and reliable seal design, high performance duel seals
Meets API RP1004 standard

Material

Body: Aluminum alloy

Shaft: Stainless Steel

Seal:Viton

Handle: Aluminum

Poppet valve: Aluminum

Bearing rod: Stainless Steel

Technical Specification
Model	YJ809	YJ810
Size	4”
Working pressure	0.6 Mpa
Pressure drop	0.024 MPa
Temperature range	-20~70℃
Operating mode	Mechanical	Semi-automatic
Medium	Diesel, Gasoline, Kersene
