API Adaptor Coupler

Name: API Adaptor Coupler
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ206, YJ206N
Price: 115.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CE

Model Number: YJ206, YJ206N

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Hard Carton

Delivery Time: 3-10 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    API Adaptor Coupler, Oil tanker environmental safety adaptor, API coupling for tanker loading


Product:	API Adaptor Coupler	Material:	Aluminum
Size:	4” To 4”, 4” To 3” ,4” To 2.5”	Connection Mode:	Notch Or NPT/BSPT

Product:	API Adaptor Coupler
Material:	Aluminum
Size:	4” To 4”, 4” To 3” ,4” To 2.5”
Connection Mode:	Notch Or NPT/BSPT

Description

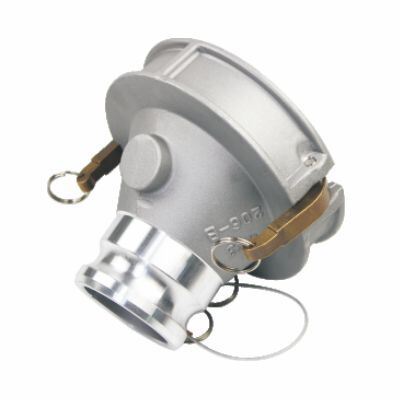

API Adaptor Coupler

Description

YJ series API adaptor coupler is the good design for API bottom adaptor to ensure the safety and quick loading and unloading.

It makes connection easier and mates with standard 4" API RP-1004 tank truck adaptors.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Cam locking operation, installed by pressing
22.5 angle downward reduce oil retention
The handle towards locking makes easier connection and more reliable sealing
Cam and free-floating eliminates friction and bending, easier to connect without grease
Meets API 1004 and standard

Material

Body: Aluminum alloy

Pin: Stainless Steel

Seal: NBR

Handle: Copper

Technical Specification
Model	YJ206N	YJ206T
Size	4” to 4”, 4” to 3” ,4” to 2.5”
Working pressure	0.6 Mpa
Temperature range	-20~70℃
Connection mode	Notch	NPT/BSPT
Operating mode	Mechanical	Mechanical
Medium	Diesel, Gasoline, Kersene
