Dry Disconnected Coupler

Product Details

Place of Origin: China

Brand Name: COWELL

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Hard Carton

Delivery Time: 3-7 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    dry disconnect coupler for tank trucks, tank truck dry break coupler, industrial dry disconnect coupler


Size:	3"	Working Pressure:	3 Bar
Operating Mode:	Mechanical	Conection:	3"BSP

Size:	3"
Working Pressure:	3 Bar
Operating Mode:	Mechanical
Conection:	3"BSP

Description

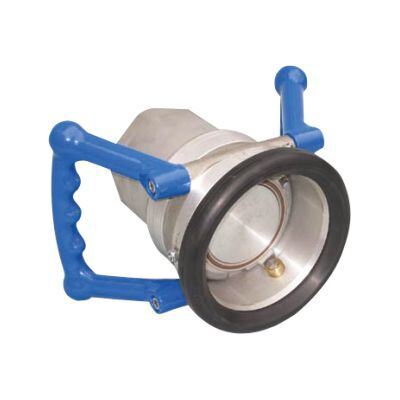

Dry Disconnected Coupler

Description

Dry disconnected coupler is designed for transfering fules consisting of female and male parts.

It is with poppet valves at both ends snappng into place by spiral. Poppet valves fully open after

connection. Fluid can pass smoothly when it disconnected. It spirally counter-clockwise rotates

and separates from each other while the poppet valve closed. It reduces the leakage of the transfering

fluid disconnected and connected to achieve environment protection and conservation safety.

Characteristics

Die cast aluminum structure, with strenth, oxidation treatment
Simple operation and quick connecting
No need to drain the fuels in hose when disconnected.
Reducing the loss of transferring fluid, safe and environment
Unable to open the poppet valve in abnormal connection

Technical Specification
Item	Female & Male Coupler
Size	3"
Working pressure	3 Bar
Operating mode	Mechanical
Temperature	-20~70℃
Connection mode	3" BSP
Medium	Diesel, Gasolilne, Kerosene
