Earthing Reel

Name: Earthing Reel
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: GD 058
Price: 90.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Model Number: GD 058

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Hard Carton

Delivery Time: 3-7 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    earthing reel for tank truck, tank truck grounding reel, industrial earthing reel with warranty


Length:	6 M	Size:	2 * 1.5 Copper
Resistance:	<60Ω	Connection Mode:	Fixed

Length:	6 M
Size:	2 * 1.5 Copper
Resistance:	<60Ω
Connection Mode:	Fixed

Description

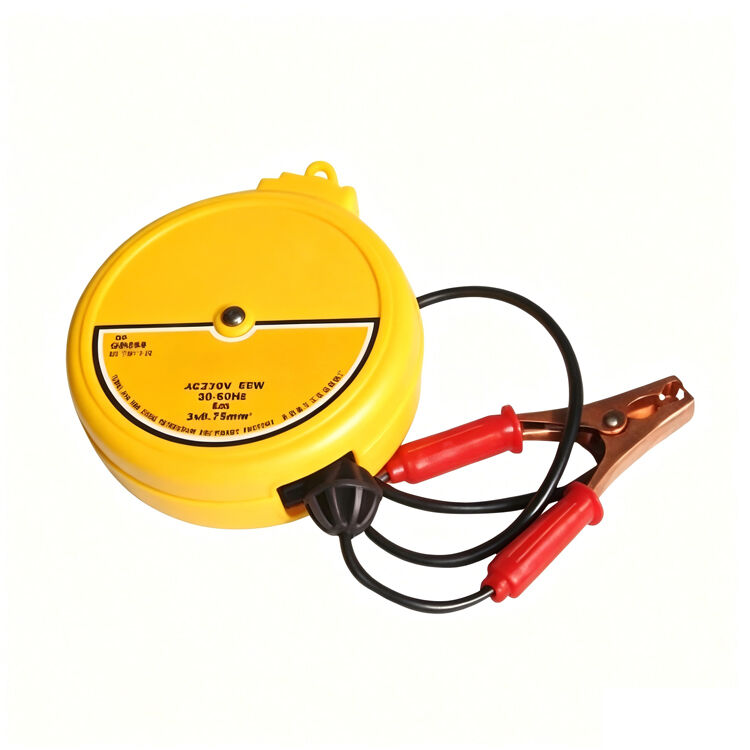

Earthing Reel

Description

Earthing reel made of high quality raw material can retract automatically. Automatic locking

device controls the length of cable extending and retracting. The good stretching design occupies

little space and convenient to use. Shell protection device effectively prevents abrasive and extend

servic life. It is 6meters in length, 180 degree swing. Working range is not limited.

Characteristics

When cable extends to the required length, pulls cable slowly till hearing the tick voice. Then the automatic bolt locks automatically.
While retracting, pulls the cable out 40cm until you can not hear the tick voice. Then it retracts.
It should be held the cable lightly to avoid the high speed of retraction, so that it prevents unnecessary damage.
6 meters telescopic reel can be installed on the truck or more convenient place by fixed bracket. It can be also installed on appropriate beam column.
It can rotate left and right 180 degree. There should be 50cm remained at the both sides of fixed bracket.
