Sight Glass

Sight Glass

Sight Glass

Product Details

Place of Origin: China

Brand Name: COWELL

Model Number: YJ6202,6203

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Hard Carton

Delivery Time: 3-7 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                            sight glass, Aluminum sight glass, plastic sight glass


Material:	Aluminum, Plastic	Size:	3" & 4"
Thickness:	28mm, 40mm, 50mm, 75mm

Material:	Aluminum, Plastic
Size:	3" & 4"
Thickness:	28mm, 40mm, 50mm, 75mm

Description

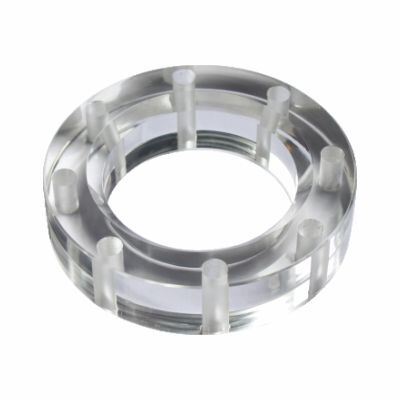

Sight Glass

Description

Sight glass flanges is installed between pipe outlet flange and API valve

to show if product is present and its color to confirm product identification.

The standard drilling is TTMA, different thickness is for your option.

Characteristics

Light and compact structure, easy to install and use
Main material is made of plastic or aluminum
Can check the transferring liquid
Flange meets TTMA standard
Pressure to 3000KPa
Max. temperature 70℃

Material

Body: Aluminum alloy

Mirror: Glass

Seal: NBR

Technical Specification
Model	YJ6202A	YJ6202B	YJ6203A	YJ6203B
Size	3"	4"	3"	4"
Thickness	28mm/40mm	28mm/40mm	50mm	75mm
Material	Plastic	Plastic	Aluminum	Aluminum
