25BAR Pressure 380V Voltage Propane Pumps Designed for High Pressure Applications

Name: 25BAR Pressure 380V Voltage Propane Pumps Designed for High Pressure Applications
Brand: cowell
SKU: LYB-2000
Price: 660.00 USD
Availability: InStock
Rating: 4.9 (121 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: cowell

Model Number: LYB-2000

Payment & Shipping Terms

Price: $660.00/pieces 1-4 pieces

Packaging Details: wooden case for LYB-2000 LPG Vane positive displacement pump

Supply Ability: 1000 Unit/Units per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	2 Years	Customized Support:	OEM
Application:	Industrial Utilities, Transfer, Loading And Unloading	Horsepower:	10HP
Power Source:	Electric	Pressure:	25BAR, High Pressure
Structure:	Vane Pump	Outlet Size:	2"
Voltage:	380V	Power:	50HZ, Electric
Standard Or Nonstandard:	Standard	Product Name:	LPG Vane Positive Displacement Pump
Max Working Pressure:	28.6bar	Max Speed:	800rpm
Internal Relief Valve:	Yes	Theory:	Positive Displacement Pump
Port:	Shanghai/ningbo For LYB-2000 LPG Vane Positive Displacement Pump

Warranty:	2 Years
Customized Support:	OEM
Application:	Industrial Utilities, Transfer, Loading And Unloading
Horsepower:	10HP
Power Source:	Electric
Pressure:	25BAR, High Pressure
Structure:	Vane Pump
Outlet Size:	2"
Voltage:	380V
Power:	50HZ, Electric
Standard Or Nonstandard:	Standard
Product Name:	LPG Vane Positive Displacement Pump
Max Working Pressure:	28.6bar
Max Speed:	800rpm
Internal Relief Valve:	Yes
Theory:	Positive Displacement Pump
Port:	Shanghai/ningbo For LYB-2000 LPG Vane Positive Displacement Pump

Description

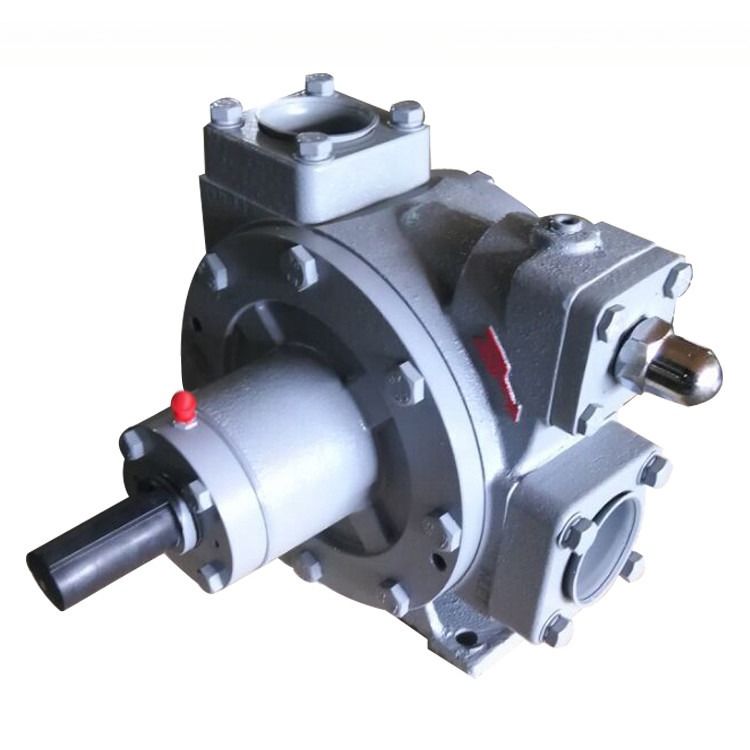

LYB-2000 LPG Vane positive displacement pump

Advantage

•Innovative cam design virtually eliminates cavitation.

•New materials utilized in cam & blades, and heavy dutybearings extending pump life.

•Single mechanical seal, easy seal replacement andmaintenance.

•Large non-metallicepins are suitable for higher pump speed.

Description

LYB-2000 LPG vanepump is positive displacement pump, which is specially designed to perform in such severe operating conditions as high differential pressure, pump over speeding, poor suction conditions. It has V-belt or direct-drive mounting with gear reducer for option.

25BAR Pressure 380V Voltage Propane Pumps Designed for High Pressure Applications 1

FlowRate
Speed RPM	Differential Pressure (Bar)	Flow Rate (L/min)	Power (KW)
800	3.4	323	2.3
800	6.9	287	4.6
650	3.4	261	1.9
650	6.9	227	3.8
500	3.4	189	1.4
500	6.9	155	2.9

Technical Specification
Inlet & Outlet:	50mm/2"
Max. Working Pressure:	28.6 Bar
Differential Pressure:	8.6 Bar
Max.Speed:	800RPM
Temperature:	-32oC~+107oC
Internal Relief Valve:	Yes

ApplicationTypical applications for LPG, NH3 bulk transfer include LPG cylinder filling
loading and unloading of bulk trucks and transport trailers.

25BAR Pressure 380V Voltage Propane Pumps Designed for High Pressure Applications 4


Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.	Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;	We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
