LYB – 2000 LPG Vane Pump

Name: LYB – 2000 LPG Vane Pump
Brand: COWELL
SKU: LYB-2000
Rating: 5 (107 reviews)

Product Details

Brand Name: COWELL

Model Number: LYB-2000

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            LPG Sliding Vane Pump, LYB-40 High Pressure LPG Dispenser, LYB-40 LPG Dispenser


Inlet /Outlet:	50mm/2''	Flow Rate:	287L/Min
Speed:	800RPM	Max Working Pressure:	28.6Bar
Differential Pressure:	8.6Bar

Inlet /Outlet:	50mm/2''
Flow Rate:	287L/Min
Speed:	800RPM
Max Working Pressure:	28.6Bar
Differential Pressure:	8.6Bar

Description

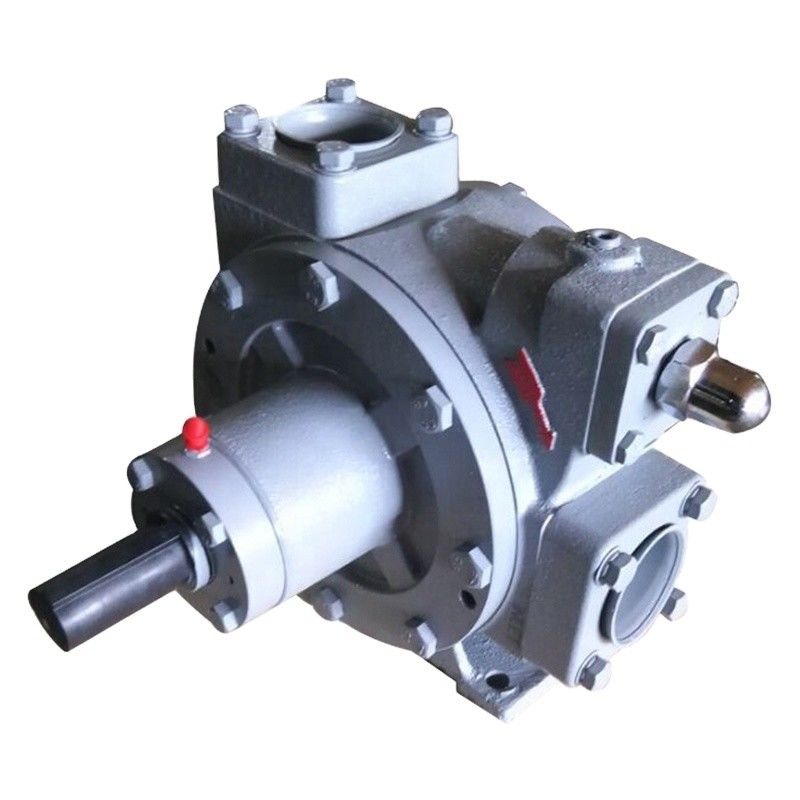

LYB – 2000 LPG Vane Pump

LYB-2000 LPG vane pump is positive displacement pump, which is specially designed to perform in such severe operating conditions as high differential pressure, pump over speeding, poor suction conditions. It has V-belt or direct-drive mounting with gear reducer for option.

Advantage

Innovative cam design virtually eliminates cavitation.
New materials utilized in cam & blades, and heavy duty bearings extending pump life.
Single mechanical seal, easy seal replacement and maintenance.
Large non-metallice pins are suitable for higher pump speed.

Technical Specification

Inlet & Outlet	50mm/2"
Flow Rate	287L/Min
Max. Working Pressure	28.6 Bar
Differential Pressure	8.6 Bar
Max.Speed	800RPM
Temperature	-32oC~+107oC
Internal Relief Valve	Yes
