CWL-50 Mechanical Mobile LPG Dispenser

Name: CWL-50 Mechanical Mobile LPG Dispenser
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: CWL-50
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Model Number: CWL-50

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 20 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Mobile Fuel Dispenser Unit, LPG Dispenser, LPG Cylinder filling system


Pump:	LWB-150	Flow Meter:	LPG-2
Nozzle:	Single	Warranty:	1 Year
Power:	5.5KW

Pump:	LWB-150
Flow Meter:	LPG-2
Nozzle:	Single
Warranty:	1 Year
Power:	5.5KW

Description

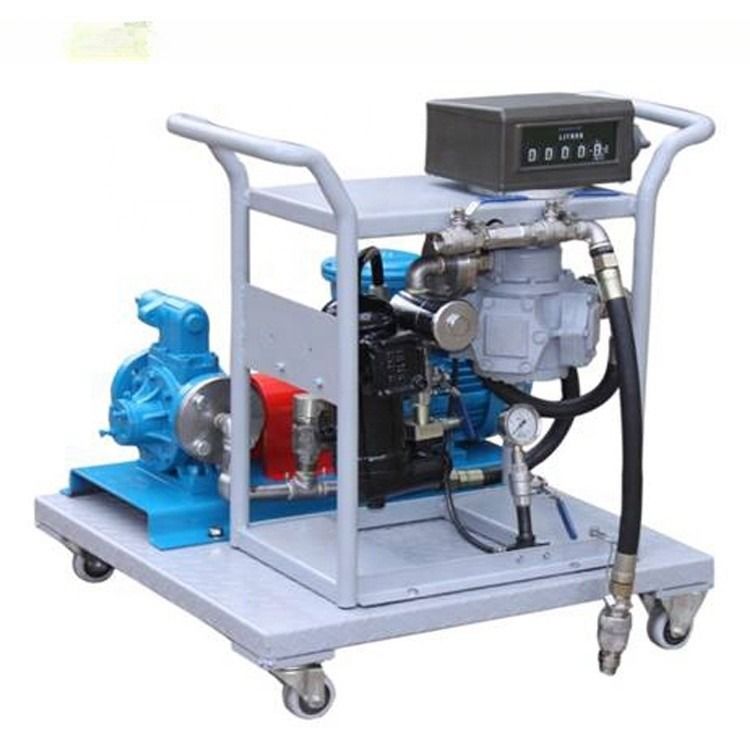

CWL-50 Mechanical Mobile LPG Dispenser

CWL-50 Mobile Dispenser is designed especially for LPG Cylinder Filling, and transport etc. It is easy to move and operate refilling.

Technical Specification

Flow Rate	85L/Min
Max Working Pressure	1.8MPa
Accuracy	±0.3%
Vacuum	≥0.035MPa
Totalizer	8 Digital
Sub-Total	5 Digital
Temperature	-40oC~+55oC

Main Components

Flow Meter	LPG-2 LPG Meter
Pump	LWB-150 Vane Pump
Separator	LPG Separator
Power	AC380±20% 50±1Hz or AC220±20% 50±1Hz
Ex-proof Motor	380V,50Hz, 5.5KW or 220V,50Hz, 5.5KW
Outlet Hose	3/4" 500mm
Inlet Hose	Flange
Breakaway	Yes
Manometer	Yes
