YQB Series LPG Vane Pump

Name: YQB Series LPG Vane Pump
Brand: COWELL
SKU: YQB Series
Rating: 4.7 (139 reviews)

Product Details

Brand Name: COWELL

Model Number: YQB Series

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 5-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    LPG Gas Transfer Vane Pump, Cowell LPG Vane Pump, Low Pressure LPG Vane Pump


Flow Rate:	2-100m3/h	Operating Pressure:	1.6-2Mpa
Differential Pressure:	0.5Mpa	Speed:	600-1450RPM

Flow Rate:	2-100m3/h
Operating Pressure:	1.6-2Mpa
Differential Pressure:	0.5Mpa
Speed:	600-1450RPM

Description

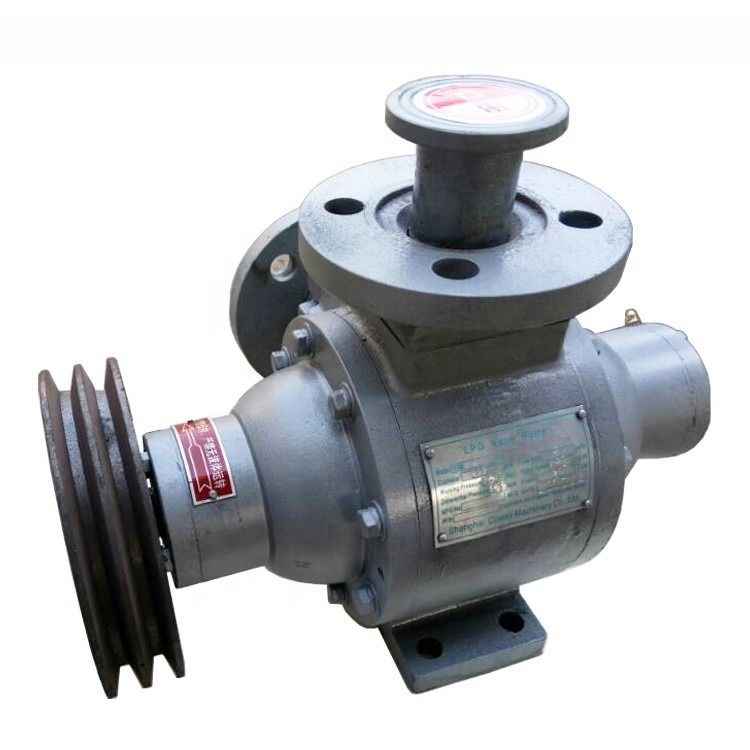

YQB Series LPG Vane Pump

YQB Series pump is positive-displacement vane pump, which features advanced structure. The operation is based on centrifugal sliding of vanes, and the flow is in relation to the rotation speed of axle. This pump features excellent sealing performance and high & stable pressure. The stator surface is composed of compound curves, and both ends are mechanically sealed. All fixing counter-faces adopt G-type seal ring. The rotary mating components adopt non-metal materials instead of metals, achieving safety, reliability and multi-purpose function.

Technical Specification

Model	Rotation Speed rpm	Flow Rate M3/h	Pressure Differential Mpa	Operating Pressure Mpa	Motor Model	Power KW	Inlet Diameter inch	Outlet Diameter inch	Temp. Range ℃
YQB2-5	960	2	0.5	2.0	YB90L-4	1.5	1	1	-40~+80
YQB5-5	1450	5	0.5	2.0	YB100L2-4	2.2	1.2	1.2	-40~+80
YQB10-5	600	10	0.5	2.0	YB132S-4	5.5	2	2	-40~+80
YQB10-5A	600	10	0.5	2.0	YB112M-4	4	2	2	-40~+80
YQB15-5	780	15	0.5	2.0	YB132S-4	5.5	2	2	-40~+80
YQB15-5A	780	15	0.5	2.0	YB112M-4	4	2	2	-40~+80
YQB25-5	600	25	0.5	1.6	YB160M-4	11	3	3	-40~+80
YQB35-5	780	35	0.5	1.6	YB160M-4	11	3	3	-40~+80
YQB50-5	600	50	0.5	1.6	YB160M-4	15	4	4	-40~+80
YQB60-5	680	60	0.5	1.6	YB180M-4	18.5	4	4	-40~+80
YQB80-5	780	80	0.5	1.6	YB180L-4	22	4	4	-40~+80
YQB100-5	780	100	0.5	1.6	YB200L-4	30	5	5	-40~+80

Application

It is mainly used for transmission of volatile liquids like liquid ammonia, LPG, aqueous ammonia, propylene, methanol, ethanol, dimethyl lamine, propylene epoxide, crude benzene, ethylene epoxide, chloromethane, dimethyl ether, isobutylene, butadiene and liquefied petroleum gas, etc.
