LWB-150 LPG Turbine Pump

Name: LWB-150 LPG Turbine Pump
Brand: COWELL
SKU: LWB-150
Rating: 4.8 (194 reviews)

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. License

Model Number: LWB-150

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            107C LPG Cylinder Filling Pump, 32C LPG Cylinder Filling Pump, Bulk Transfer LPG Filling Pump


Flow Rate:	85 L/min	Speed:	50Hz/2880 RPM Or 60Hz/3450RPM
Max Working Pressure:	27.6 Bar/400PSI	Differential Pressure:	17.2 Bar/250PSI
Temperature:	32~+107℃	Fuel:	LPG
Warranty:	1 Year

Flow Rate:	85 L/min
Speed:	50Hz/2880 RPM Or 60Hz/3450RPM
Max Working Pressure:	27.6 Bar/400PSI
Differential Pressure:	17.2 Bar/250PSI
Temperature:	32~+107℃
Fuel:	LPG
Warranty:	1 Year

Description

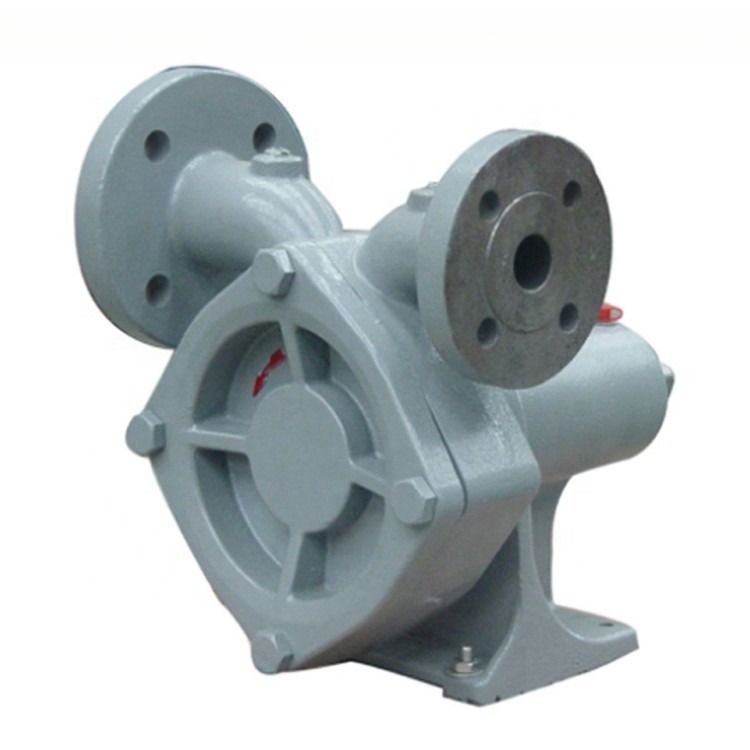

LWB-150 LPG Turbine Pump

LWB-150 LPG Turbine Pump is for high differential pressure application like aboveground & underground tank transfer etc. or direct-drive mounting with gear reducer for option.

Advantage

Economic alternative to submersible designs.
Meeting multiple demands for low or high flow rate with high differential pressure in LPGapplication. This pump is an ideal pump for two dual hose LPG dispensers.
Continuous duty design.
Easy to use and economic.

Flow Rate Curve

LWB-150 LPG Turbine Pump 0

Technical Specification

Inlet	40mm/1.5"
Outlet	25mm/ 1"
Flow Rate	85 L/min
Speed	50Hz/2880 RPM or 60Hz/3450RPM
Max Working Pressure	27.6 Bar/400PSI
Differential Pressure	17.2 Bar/250PSI
Temperature	-32oC~+107oC
