DB-65 LPG Side Channel Multistage Pump

Name: DB-65 LPG Side Channel Multistage Pump
Brand: COWELL
SKU: DB-65
Rating: 5 (153 reviews)

Product Details

Brand Name: COWELL

Model Number: DB-65

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    25bar Oil Pressure LPG Pump, Autogas Dispensing Pump, 25bar Autogas Dispensing Pump


Max.Pressure:	40bar At 1200C	Inlet:	65mm
Outlet:	32mm	Flow Rate:	85-100L/min

Max.Pressure:	40bar At 1200C
Inlet:	65mm
Outlet:	32mm
Flow Rate:	85-100L/min

Description

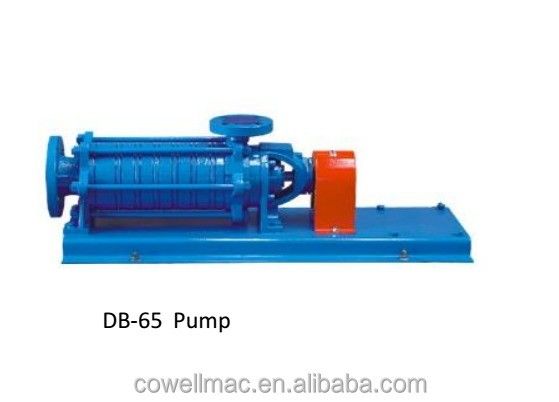

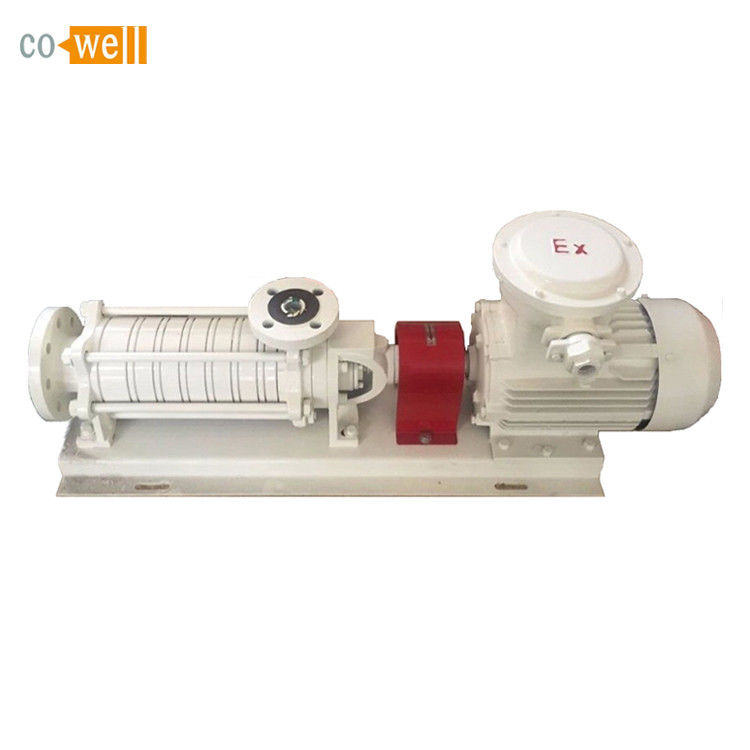

DB-65 LPG Side Channel Multistage Pump

The DB-65 multistage pump, centrifugal and side channel, is designed with 6 stages, having a horizontal configuration, shaft sealing by mechanical seal without cooling, for handling LPG (liquid gas ), the liquids involving high-differential pressure, low NPSH conditions and aerated liquids up to 50% gas, such as pumping from underground tanks. The use of a pre-compression turbine at the suction end makes it possible to obtain a very small required NPSH, so that this pump can be used under very difficult suction conditions.

Technical Specification

Direction of rotation	Anti-clockwise facing the end of the pump drive shaft
Max. Pressure	40 bars at 120℃
Speed	1450rpm
Power	380V,50Hz,4KW
Ambient Temperature	20℃～＋60℃
Number of stages	6
Connecting flanges	DIN 2501, PN 40 as per DIN 2501, PN 40
Bearings	Sleeve bearing at the pump end, ball bearing at the drive end

Application

LPG cylinder filling
Pumping LPG from underground storage
Bulk filling operations
Loading/unloading of bulk trucks and transport trailers
Vaporizer feed pumps.
