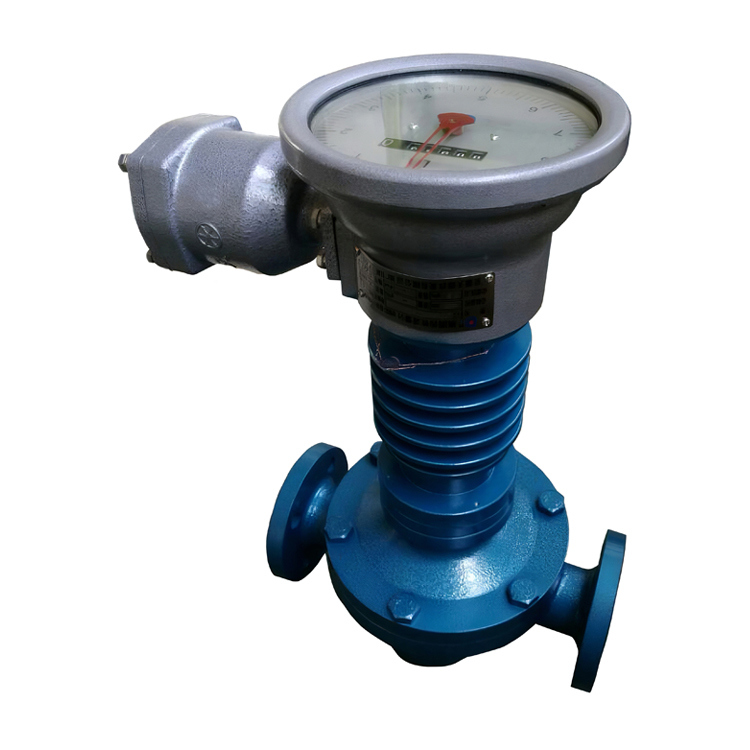

OGM-HT Series High Temperature Oval Gear Meter with Pulser

Name: OGM-HT Series High Temperature Oval Gear Meter with Pulser
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: OGM-HT
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. Certificate

Model Number: OGM-HT

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 5-15 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Oval gear flow meter with Pulser, Viscous fluid flow meter, High-temperature flow meter


Accuracy:	0.5%	Material:	Cast Iron, Cast Steel, Stainless Steel 304
Output:	Pulses	Product Name:	Oval Gear Flow Meter
Medium:	Heavy Oil, Diesel, Gasoline, Solvents	Temperature:	-30~180°C

Accuracy:	0.5%
Material:	Cast Iron, Cast Steel, Stainless Steel 304
Output:	Pulses
Product Name:	Oval Gear Flow Meter
Medium:	Heavy Oil, Diesel, Gasoline, Solvents
Temperature:	-30~180°C

Description

OGM-HT Series High Temperature Oval Gear Meter with Pulser

Description

OGM Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.

Characteristics

High accuracy, wide range of the flow, excellent repeatability.
Spiral rotor rotating evenly, small vibration and longevity.
Suitable for high viscosity of the liquid measurement
Simple structure, small size and light weight
Easy to install
Reset to "0"

Technical Specification

Mode	OGM-HT15	OGM-HT20	OGM-HT25		OGM-HT40	OGM-HT50	OGM-HT80		OGM-HT100	OGM-HT150
DN (mm)	15	20	25		40	50	80		100	150
Min. Flow Rate m3/h	0.3	0.3	0.6		1.6	5	6		10	38
Max. Flow Rate m3/h	1.6	3	6		16	25	50		80	190
Accuracy %	+-0.3～+-0.5
Working Temperature ^oC	-10～80
Pressure Mpa	1.0-6.3
Liquid Viscosity MPa.s	2～75
Min. Scale Value L	0.1			1				10
Register Amount m3	999.99			9999.9				99999
