M-50-NX-1 Preset PD Flow Meter with Printer

Name: M-50-NX-1 Preset PD Flow Meter with Printer
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: M-50-NX-1
Price: 440.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Model Number: M-50-NX-1

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 5-15 Working days

Payment Terms: T/T,L/C

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Industrial Fluid Preset Flow Meter with Ticket printer, Mechanical preset flow meter with printer, Preset flow meter with ticket printer


Warranty:	2 Years	Customized Support:	OEM;ODM
Diameter:	50mm/2"	Flow Range:	38-380L/Min Or 55-550L/Min
Max. Pressure:	10Bar/150PSI	Application:	Fuel Oil, Diesel, Lpg Etc
Material:	Aluminum

Warranty:	2 Years
Customized Support:	OEM;ODM
Diameter:	50mm/2"
Flow Range:	38-380L/Min Or 55-550L/Min
Max. Pressure:	10Bar/150PSI
Application:	Fuel Oil, Diesel, Lpg Etc
Material:	Aluminum

Description

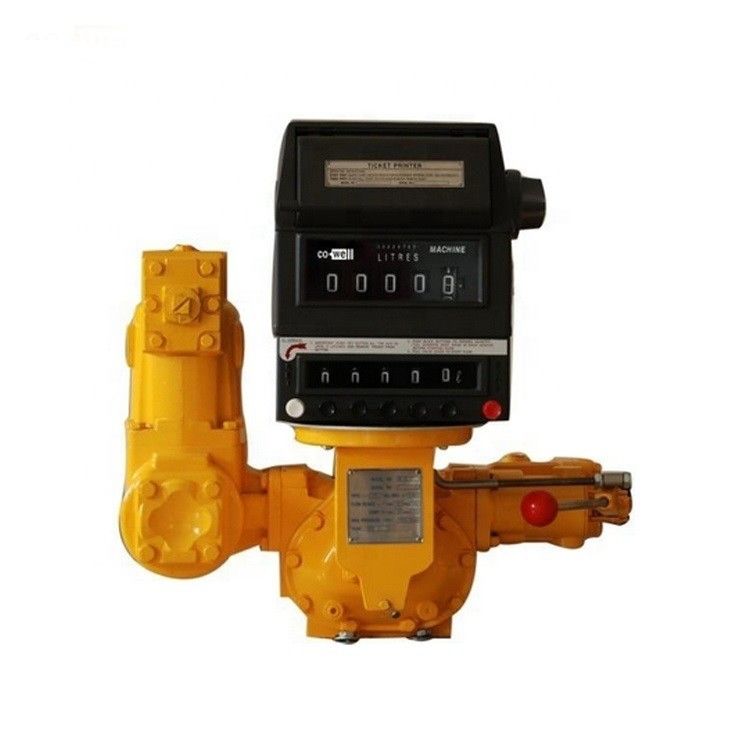

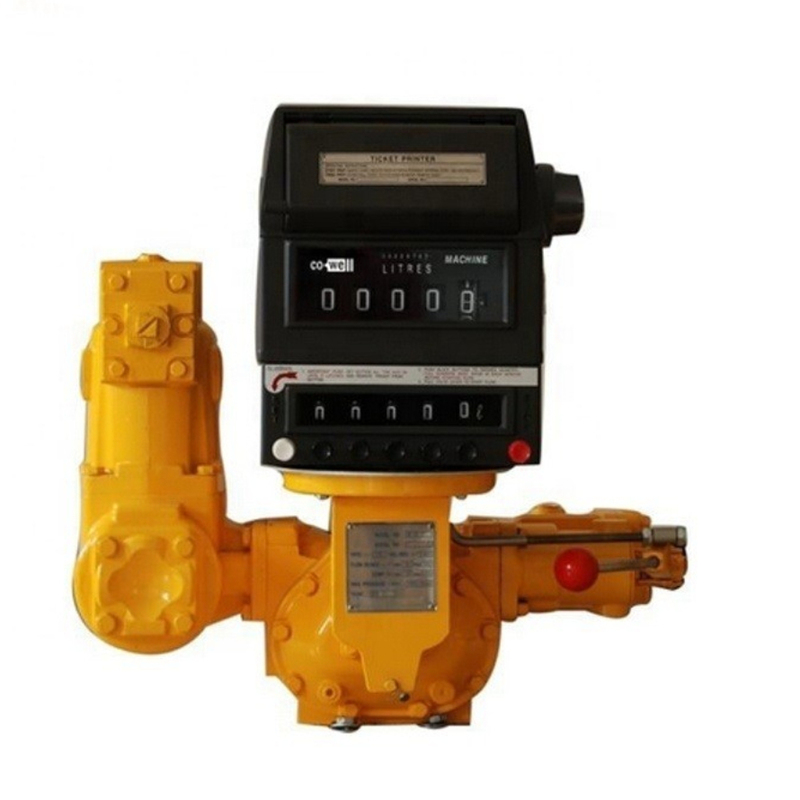

M-50-NX-1 PD Flow Meter with Mechanical Register, Preset Register, Strainer, Air Eliminator & Ticket Printer

Characteristics

Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction

Technical Data

Model	M-40-NX-1	M-50-NX-1	M-50H-NX-1	M-80-NX-1	M-80H-NX-1	M-100-NX-1	M-100H-NX-1	M-150-NX-1	M-150H-NX-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
