M-40-KPX-1 Electronic Positive Displacement Flow Meter

Name: M-40-KPX-1 Electronic Positive Displacement Flow Meter
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: M-40-KPX-1
Price: 440.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Model Number: M-40-KPX-1

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 working days

Payment Terms: By T/T; LC

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Batch control system, Electronic register counter, Flow rate measurement


Warranty:	2 Years	Customized Support:	OEM,ODM
Diameter:	40mm/1.5"	Flow Rate:	38-380L/Min Or 55-550L/Min
Max.Pressure:	10Bar/150PSI	Accuracy:	±0.2%
Viscosity:	30SSU-1,500,000SSU	Measurement:	Liter Or Gallon
Voltage:	220VAC Or 24VDC For Option

Warranty:	2 Years
Customized Support:	OEM,ODM
Diameter:	40mm/1.5"
Flow Rate:	38-380L/Min Or 55-550L/Min
Max.Pressure:	10Bar/150PSI
Accuracy:	±0.2%
Viscosity:	30SSU-1,500,000SSU
Measurement:	Liter Or Gallon
Voltage:	220VAC Or 24VDC For Option

Description

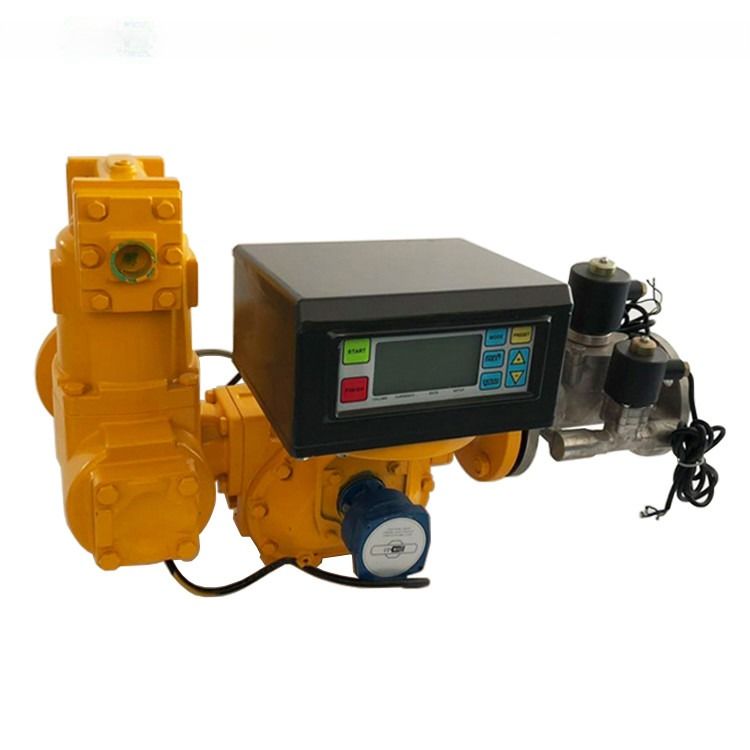

M-40-KPX-1 Electronic Positive Displacement Flow Meter

Characteristics

Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction

Technical Data

Model	M-40-KPX-1	M-50-KPX-1	M-50H-KPX-1	M-80-KPX-1	M-80H-KPX-1	M-100-KPX-1	M-100H-KPX-1	M-150-KPX-1	M-150H-KPX-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
