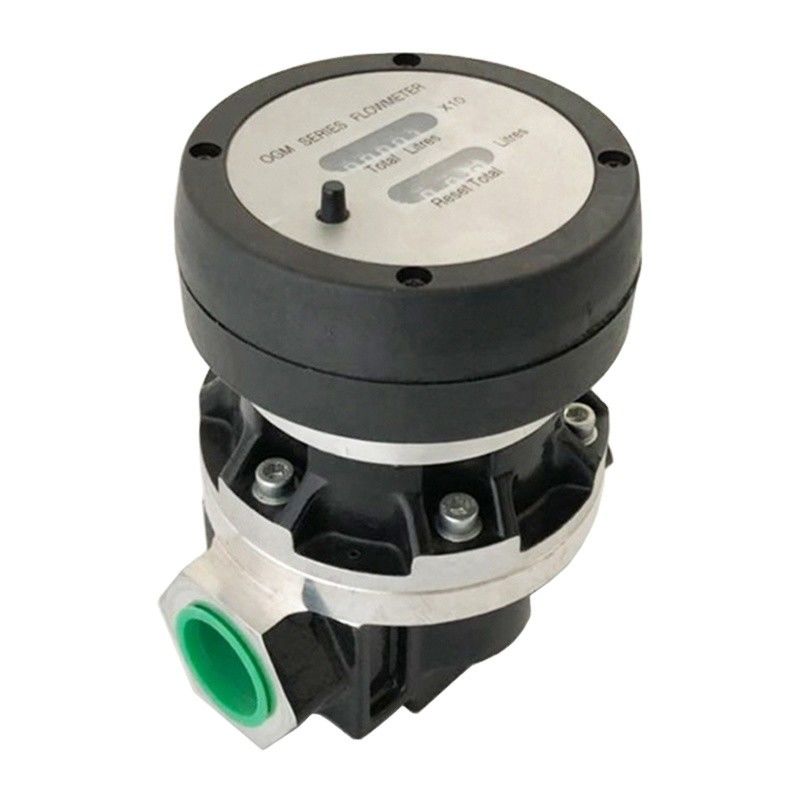

OGM-A-25 Aluminum Oval Gear Meter

OGM-A-25 Aluminum Oval Gear Meter

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: MFG. License

Model Number: OGM-A-25

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 3-15 Working days

Payment Terms: T/T, L/C

Get Best Price
Contact Now
Specifications
Highlight:

Aluminum Oval Gear Meter

,

OGM-A-25 Oval Gear Meter

,

OGM-A-25 Flowmeter Oval

Type:
Oval Gear
Diameter:
25mm/1''
Accuracy:
±0.5%
Min.Flow Rate:
20L/Min
Max.Flow Rate:
200L/Min
Repeatability:
≤0.03%
Max.Viscosity:
1000CPS
Max.Operationg Pressure:
3.4Mpa
Material:
Aluminum
Type:
Oval Gear
Diameter:
25mm/1''
Accuracy:
±0.5%
Min.Flow Rate:
20L/Min
Max.Flow Rate:
200L/Min
Repeatability:
≤0.03%
Max.Viscosity:
1000CPS
Max.Operationg Pressure:
3.4Mpa
Material:
Aluminum
Description

OGM-A-25 Aluminum Oval Gear Meter



Technical Specification

Description



OGM series Aluminum Oval Gear Meter can handle a wide range of viscous fluids with exceptional levels of repeatability and durability. It has mechanical display and electronic display for option.





Advantage



  • Compact size, easy maintenance.
  • Easy to read and operate mechanical display
  • Horizontal and vertical flexibility of installation options
  • Low pressure drop



Application



Widely used in Petroleum, Chemical, Medicine, Tranportation, food industry etc..





Construction



OGM-A-25 Aluminum Oval Gear Meter 0





Techanical Specification



Type OGM-A(E)-25 OGM-A(E)-40 OGM-A(E)-50
Size 1" 1.5" 2"
Min.Flow Rate 20L/Min 25L/min 30L/min
Max.Flow Rate 200L/Min 250L/min 300L/min
Accuracy ±0.5% ±0.5% ±0.5%
Repeatability ≤0.03% ≤0.03% ≤0.03%
Max. Viscosity 1000CPS 1000CPS 1000CPS
Max. Operationg Pressure 3.4Mpa 1.8MPa 1.8MPa



Technical Specification



Model Volume Per Revolution Pulser Voltage Currency Signal
OGM-A-25-P 0.0552L/R 4 Pulses/R DC5-36V 15mA 2 Waves
OGM-A-40-P 0.1368L/R
OGM-A-50-P 0.2964L/R





Wave



OGM-A-25 Aluminum Oval Gear Meter 1
