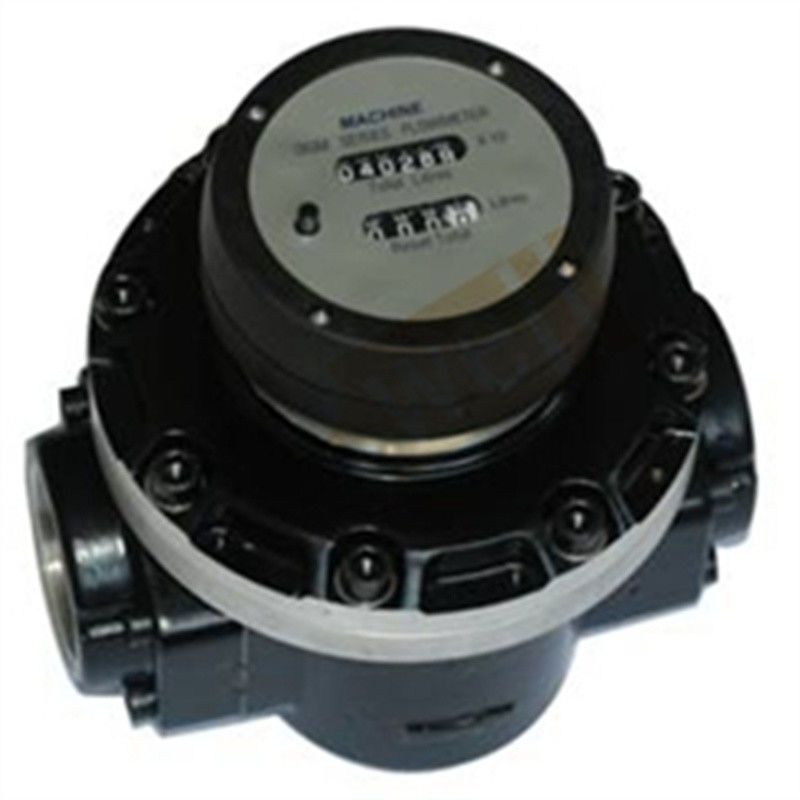

OGM-A-50 Aluminum Oval Gear Meter

Name: OGM-A-50 Aluminum Oval Gear Meter
Brand: COWELL/OEM
SKU: OGM-A-50
Rating: 4.8 (169 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: MFG. License

Model Number: OGM-A-50

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 3-15 Working days

Payment Terms: L/C, T/T

Supply Ability: 3000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Aluminum Oval Gear Meter, OGM-A-50 Oval Gear Meter, OGM-A-50 flow meter oval gear


Diameter:	50mm/2''	Type:	Oval Gear
Accuracy:	±0.5%	Min.Flow Rate:	30L/Min
Max.Flow Rate:	300L/Min	Repeatability:	≤0.03%
Max.Viscosity:	1000CPS	Max.Operationg Pressure:	3.4Mpa
Material:	Aluminum

Diameter:	50mm/2''
Type:	Oval Gear
Accuracy:	±0.5%
Min.Flow Rate:	30L/Min
Max.Flow Rate:	300L/Min
Repeatability:	≤0.03%
Max.Viscosity:	1000CPS
Max.Operationg Pressure:	3.4Mpa
Material:	Aluminum

Description

OGM-A-50 Aluminum Oval Gear Meter

Technical Specification

Description

OGM series Aluminum Oval Gear Meter can handle a wide range of viscous fluids with exceptional levels of repeatability and durability. It has mechanical display and electronic display for option.

Advantage

Compact size, easy maintenance.
Easy to read and operate mechanical display
Horizontal and vertical flexibility of installation options
Low pressure drop

Application

Widely used in Petroleum, Chemical, Medicine, Tranportation, food industry etc..

Construction

OGM-A-50 Aluminum Oval Gear Meter 0

Techanical Specification

Type	OGM-A(E)-25	OGM-A(E)-40	OGM-A(E)-50
Size	1"	1.5"	2"
Min.Flow Rate	20L/Min	25L/min	30L/min
Max.Flow Rate	200L/Min	250L/min	300L/min
Accuracy	±0.5%	±0.5%	±0.5%
Repeatability	≤0.03%	≤0.03%	≤0.03%
Max. Viscosity	1000CPS	1000CPS	1000CPS
Max. Operationg Pressure	3.4Mpa	1.8MPa	1.8MPa
