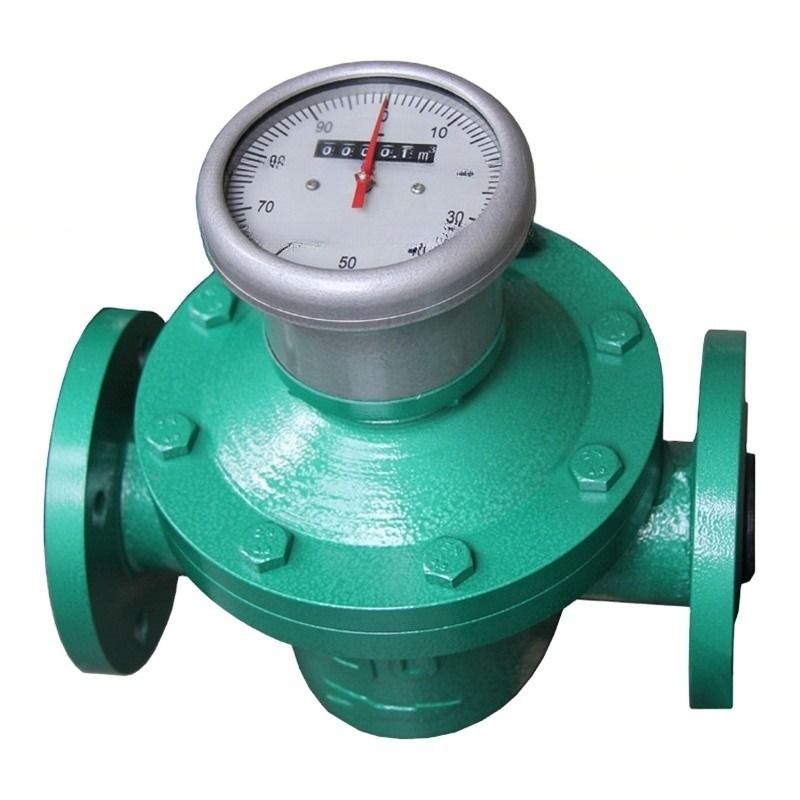

OGM-I Series Cast Iron Oval Gear Meter

Name: OGM-I Series Cast Iron Oval Gear Meter
Brand: COWELL/OEM
SKU: OGM-I Series
Rating: 4.7 (198 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: MFG. License

Model Number: OGM-I Series

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 3-15 Working days

Payment Terms: T/T

Supply Ability: 3000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Cast Iron Oval Gear Meter, OGM-I Series Oval Gear Meter, OGM-I Oval Gear Meter


Diameter:	15mm-200mm; 1/2"-8"	Type:	Oval Gear
Accuracy:	±0.3-0.5%	Pressure:	1.0-6.3Mpa
Material:	Cast Iron, Carbon Steel, Stainless Steel

Diameter:	15mm-200mm; 1/2"-8"
Type:	Oval Gear
Accuracy:	±0.3-0.5%
Pressure:	1.0-6.3Mpa
Material:	Cast Iron, Carbon Steel, Stainless Steel

Description

OGM-I Series Cast Iron Oval Gear Meter

Description

OGM Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.

Characteristics

High accuracy, wide range of the flow, excellent repeatability.
Spiral rotor rotating evenly, small vibration and longevity.
Suitable for high viscosity of the liquid measurement
Simple structure, small size and light weight
Easy to install
Reset to "0"

Technical Specification

Mode	OGM-I-15	OGM-I-20	OGM-I-25		OGM-I-40	OGM-I-50	OGM-I-80		OGM-I-100	OGM-I-150
DN (mm)	15	20	25		40	50	80		100	150
Min. Flow Rate m3/h	0.3	0.3	0.6		1.6	5	6		10	38
Max. Flow Rate m3/h	1.6	3	6		16	25	50		80	190
Accuracy %	+-0.3～+-0.5
Working Temperature ^oC	-10～80
Pressure Mpa	1.0-6.3
Liquid Viscosity MPa.s	2～75
Min. Scale Value L	0.1			1				10
Register Amount m3	999.99			9999.9				99999
