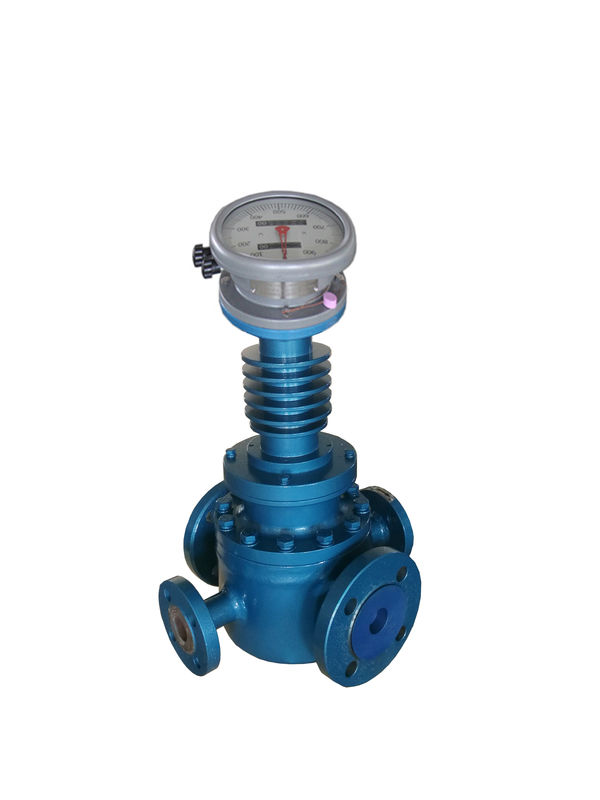

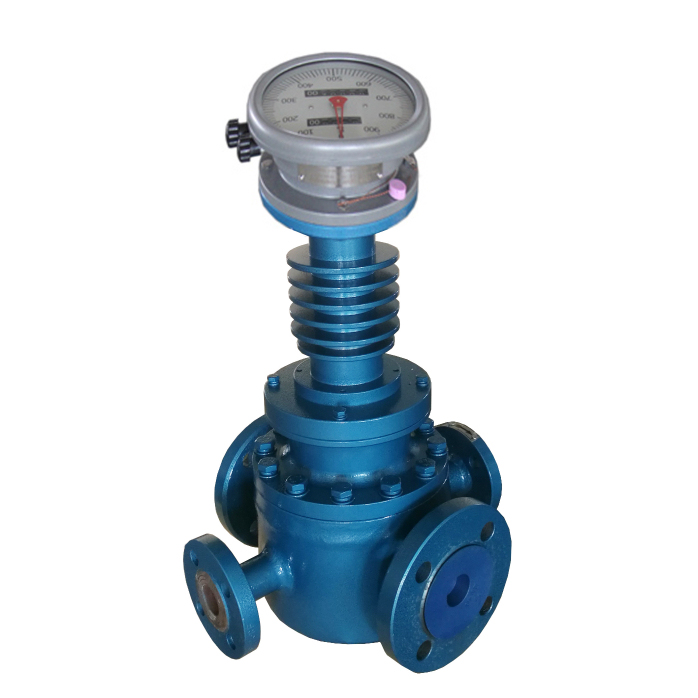

OGM-HT Series Oval Gear Meter for Asphalt

Name: OGM-HT Series Oval Gear Meter for Asphalt
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: OGM-HT Series
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: MFG. License

Model Number: OGM-HT Series

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Supply Ability: 3000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Asphalt Oval Gear Meter, Bitumen Oval Gear Meter, Viscous liquid flow meter


Diameter:	15mm-200mm; 1/2"-8"	Type:	Oval Gear
Pressure:	1.0-6.3Mpa	Accuracy:	±0.3-0.5%
Temperature:	200 0C	Material:	Cast Iron, Carbon Steel, Stainless Steel

Diameter:	15mm-200mm; 1/2"-8"
Type:	Oval Gear
Pressure:	1.0-6.3Mpa
Accuracy:	±0.3-0.5%
Temperature:	200 0C
Material:	Cast Iron, Carbon Steel, Stainless Steel

Description

OGM-HT Series Oval Gear Meter for Asphalt

Description

OGM Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.

Characteristics

High accuracy, wide range of the flow, excellent repeatability.
Spiral rotor rotating evenly, small vibration and longevity.
Suitable for high viscosity of the liquid measurement
Simple structure, small size and light weight
Easy to install
Reset to "0"

Technical Specification

Mode	OGM-I-15	OGM-I-20	OGM-I-25		OGM-I-40	OGM-I-50	OGM-I-80		OGM-I-100	OGM-I-150
DN (mm)	15	20	25		40	50	80		100	150
Min. Flow Rate m3/h	0.3	0.3	0.6		1.6	5	6		10	38
Max. Flow Rate m3/h	1.6	3	6		16	25	50		80	190
Accuracy %	+-0.3～+-0.5
Working Temperature ^oC	-10～80
Pressure Mpa	1.0-6.3
Liquid Viscosity MPa.s	2～75
Min. Scale Value L	0.1			1				10
Register Amount m3	999.99			9999.9				99999
