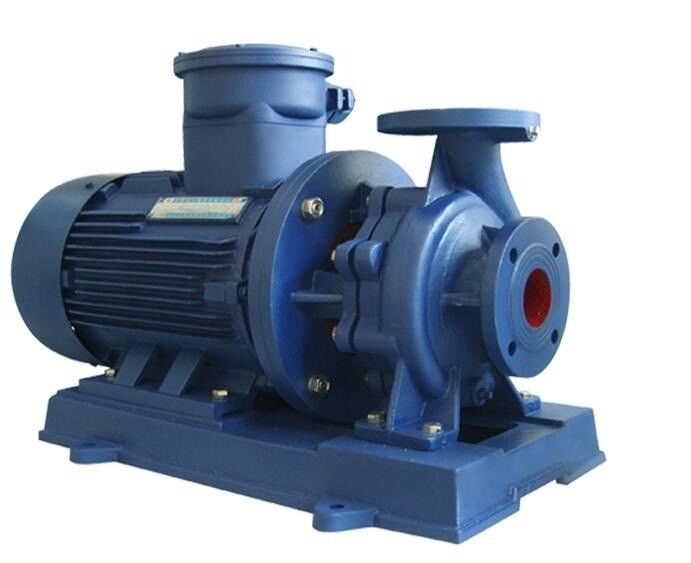

KCW Horizontal Centrifugal Pump

KCW Horizontal Centrifugal Pump

Product Details

Place of Origin: China

Brand Name: COWELL

Model Number: KCW Series

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

KCW Horizontal Centrifugal Pump

,

KCB series Horizontal Centrifugal Pump

,

IR type Centrifugal Pump

Flow Rate:
Max. 1800m3/h
Head:
Max .150m
Flow Rate:
Max. 1800m3/h
Head:
Max .150m
Description
KCW Horizontal Centrifugal Pump


Description


KCB series horizontal centrifugal pump is the ideal, new generation, high efficiency, energy saved product, which is according to the performance parameter of the IS,IR type centrifugal pump and ISO standard.





Main Specification



1.Shaft seal material: titanium or carbide alloy wearable material, anti-high temperature mechanical seal
2.Max. working pressure ≤1.6MPa or Bigger
3.Proper medium: Water, Oils etc
4.Temperature ≤40oC
5.Relative humidity ≤95%
6.Flow Rate: max 1800m3/h
7. Head: Max .150m





Characteristic



1.Compact structure, with motor, beautiful outline, take small place, about 30% reduce compare to common horizontal type. It can working in outdoor with IP54 outdoor motor.

2. Stablely operated, low noise, direct coupling, the impeller has balance performance with non-vibration, low noise, which is relong the use life of the shaft bearing, and improve the working environment.

3. Mechanical seal, dynamic and static loop are made of hard alloy, anti-grind, non-leakage, long used.

4. Adopt advanced hydraulic module with high effiency and good performance.

5. Particular structure, the pump bottom has a water discharge hole, and take pressure hole both in inlet and outlet flange, which is comfirm good performance and maintance.

6. Level inlet, vertical outlet, that convenience to install the pipe.
