KLS Series Vertical Centrifugal Water Pump

Name: KLS Series Vertical Centrifugal Water Pump
Brand: COWELL
SKU: kls
Rating: 5 (199 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Model Number: kls

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            KLS Series Vertical Centrifugal Pumps, KLS Series Vertical Centrifugal Water Pump, KLS Vertical Centrifugal Water Pump


Diameter:	20mm-500mm	Flow Range:	1.8-1600m3/h
Head:	5-150m	Speed:	970-2900RPM
Material:	Cast Iron, Carbon Steel, Stainless Steel

Diameter:	20mm-500mm
Flow Range:	1.8-1600m3/h
Head:	5-150m
Speed:	970-2900RPM
Material:	Cast Iron, Carbon Steel, Stainless Steel

Description

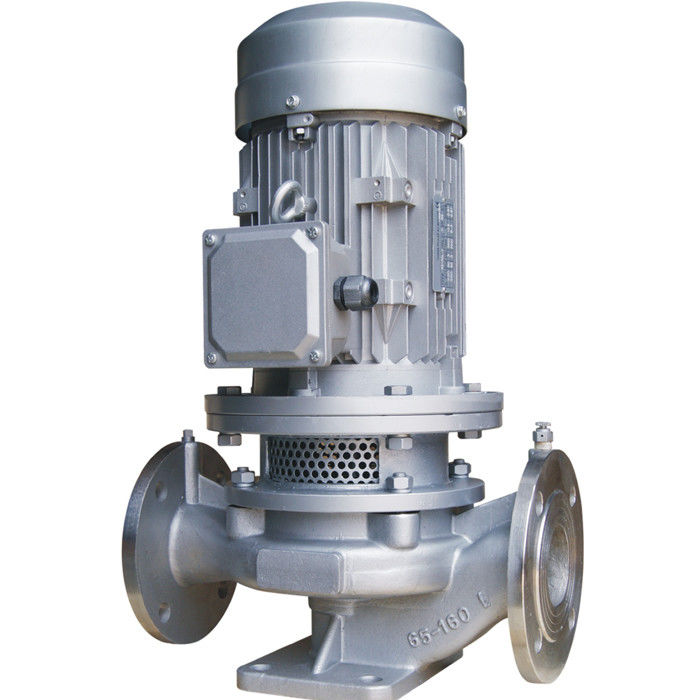

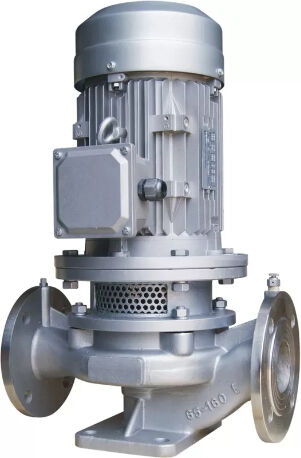

KLS Series Vertical Centrifugal Water Pump

Description

The KLS vertical pipeline centrifugal pump is a combination design of excellent hydraulic models. It is suitable for hot water, high temperature, and corrosive chemical pumps using different materials. It has the advantages of high efficiency, energy conservation, low noise, and reliable performance.

Characteristics

The pump is a vertical structure with the same inlet and outlet diameters, and is located on the same centerline. It can be installed in the pipeline like a valve.
The impeller is directly installed on the extended shaft of the motor, with a short axial size, compact and beautiful structure, small footprint, low building investment, and can be used outdoors with a protective cover.
The reasonable configuration of pump and motor bearings can effectively balance the radial and axial loads generated by pump operation, thereby ensuring smooth operation of the pump, low vibration, and low noise.
The shaft seal adopts mechanical seal or a combination of mechanical seals, using imported titanium alloy sealing rings, medium high temperature resistant mechanical seals, and hard alloy materials, wear-resistant seals, which can effectively extend the service life.
Easy installation and maintenance, without the need to dismantle the pipeline and road system. As long as the pump coupling seat nut is removed, all rotor components can be extracted.
The vertical and horizontal installation of pumps can be adopted according to the requirements of pipeline layout, and the series and parallel operation of pumps can be adopted according to the requirements of flow rate and head.

Application

KLS type vertical pipeline centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, cold and warm water circulation pressurization and equipment matching, with a operating temperature of T<80 ℃.
KLS vertical pipeline chemical pump is used for conveying liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. It is suitable for departments such as petroleum, chemical, power, papermaking, food and pharmaceutical, and synthetic fibers, with operating temperatures ranging from -20 ℃ to+120 ℃.
