ZLXB80/32 Centrifugal Vortex Pump

Name: ZLXB80/32 Centrifugal Vortex Pump
Brand: COWELL
SKU: ZLXB80/32
Rating: 4.9 (106 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: ZLXB80/32

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    ZLXB80/32 Centrifugal Vortex Pump, ZLXB80/32 Vortex Centrifugal Pump, COWELL Centrifugal Vortex Pump


Diameter:	3"	Flow Rate:	32m3/h
Speed:	1450RPM	Head:	54M
Power:	22KW	Material:	Aluminum

Diameter:	3"
Flow Rate:	32m3/h
Speed:	1450RPM
Head:	54M
Power:	22KW
Material:	Aluminum

Description

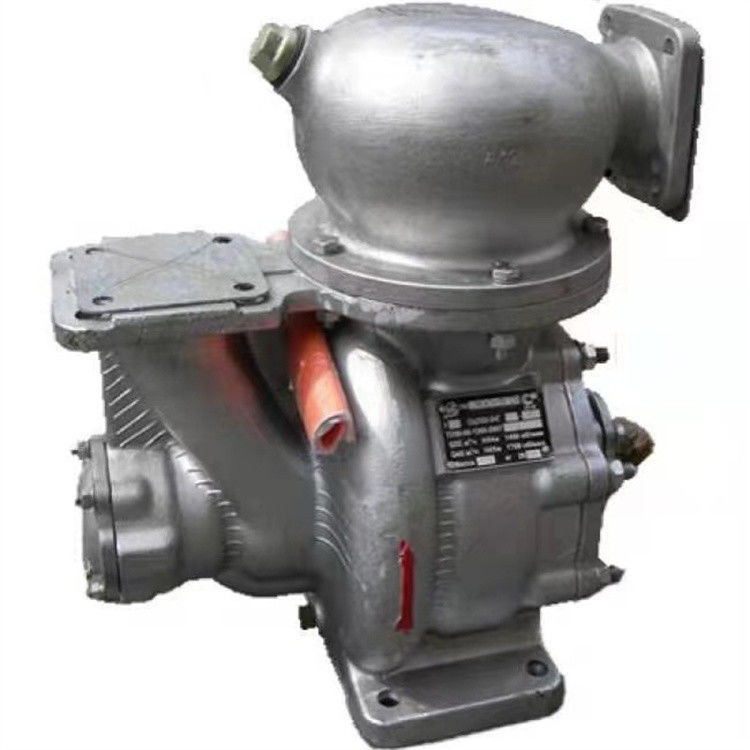

ZLXB80/32 Centrifugal Vortex Pump

Description

ZLXB80/32 centrifugal vortex self-priming pump is two-stage horizontal pump designed for pumping pure, impurity free liquids, such as water, gasoline, kerosene, alcohol, and other neutral liquids, with a viscosity not exceeding 2 * 10-5 m2/s. Ambient temperature can reach -40℃. The pump is widely used for operating in gasoline, engine oil, and lubricating oil and oil depots etc. It can be installed on the mounting plate driven by motor with coupling shaft or installed on gas tankers, and airport gas tankers driven by engine for mobile refueling. It is stable and enduring.The pump rotates left and right.

Feature

Vortex structure, double impeller, stable performance, high reliability
Compact and easy to install
Body: Aluminum alloy, Bronze or Aluminum Impeller
Low noise, high flow, long service life
Low maintenance

Technical Specification

Model

Specification

ZLXB80/32

Diameter: 80mm

Flow rate: 32m3/h

Delivery Head: 54M

Suction Head:5.5M

Speed: 1450RPM

Body Material: Aluminum

Recommended Power: 22KW

Net weight:35Kgs

Gross weight:52Kgs
