OGM-R-40 Russian Oval Gear Meter

Name: OGM-R-40 Russian Oval Gear Meter
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: OGM-R-40
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: MFG. License

Model Number: OGM-R-40

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Carton

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Russian Oval Gear Meter, low temperature flow meter, cold-resistant flow meter


Diameter:	40mm/1.5''	Customized Support:	Oval Gear
Min.Flow Rate:	40L/Min	Max.Flow Rate:	400L/Min
Accuracy:	±0.3-0.5%	Repeatability:	≤0.17%
Material:	Cast Iron

Diameter:	40mm/1.5''
Customized Support:	Oval Gear
Min.Flow Rate:	40L/Min
Max.Flow Rate:	400L/Min
Accuracy:	±0.3-0.5%
Repeatability:	≤0.17%
Material:	Cast Iron

Description

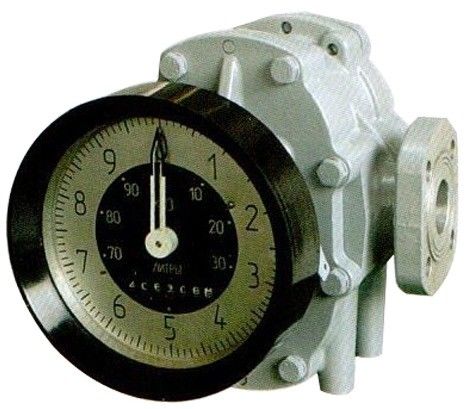

OGM-R-40 Russian Oval Gear Meter

Description

OGM Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc.

Characteristics

High accuracy, wide range of the flow, excellent repeatability.
Spiral rotor rotating evenly, small vibration and
longevity.
Suitable for high viscosity of the liquid measurement
Easy to install

Technical Specification

Mode	OGM-R-25	OGM-R-40
DN (mm)	25mm/1”	40mm/1-1/2”
Min. Flow Rate	20-120L/Min	40-400L/Min
Accuracy %	+-0.5
Repeatability	≤ 0.17%
Working Temperature ^oC	-30～80
Pressure Bar	16
