FMC-50-NX Preset Flow Meter with Ticket Printer

Name: FMC-50-NX Preset Flow Meter with Ticket Printer
Brand: COWELL
SKU: FMC-50-NX
Rating: 4.5 (131 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: FMC-50-NX

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            preset pd type flow meter, pd type flow meter fmc-50, preset positive displacement type flow meter


Warranty:	2 Years	Diameter:	50mm/2"
Flow Rate:	38-380L/Min	Pressure:	10Bar/150PSI
Accuracy:	+-0.2%	Repeatability:	Less Than 0.07%
Material:	Cast Iron

Warranty:	2 Years
Diameter:	50mm/2"
Flow Rate:	38-380L/Min
Pressure:	10Bar/150PSI
Accuracy:	+-0.2%
Repeatability:	Less Than 0.07%
Material:	Cast Iron

Description

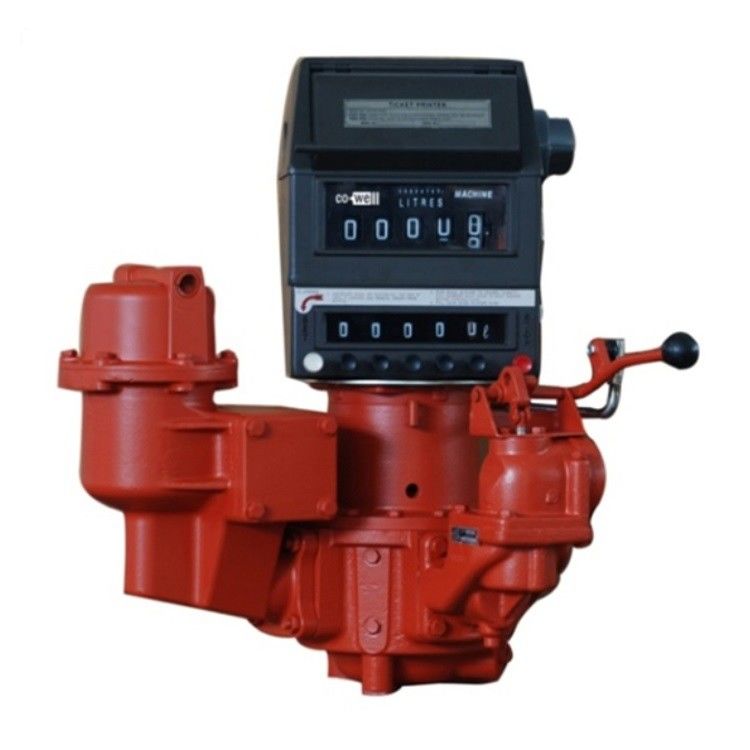

FMC-50-NX Preset Flow Meter with Ticket Printer

Characteristics

FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc..
Compact, versatile design can be readily fit into nearly all installations.
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.

Construction

FMC-50-NX Preset Flow Meter with Ticket Printer 1

Inlet & Outlet Installation

FMC-50-NX Preset Flow Meter with Ticket Printer 2

Application

Application includes: blending, batching, dispensing, inventory control and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
