SBF Scrape-board Flowmeter

Name: SBF Scrape-board Flowmeter
Brand: COWELL
SKU: SBF
Rating: 4.9 (125 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Model Number: SBF

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 20-25 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    SBF Scrape Board Flowmeter, SBF Positive Displacement Flow Meter, 400mm Dia Positive Displacement Flow Meter


Diameter:

25-400MM

Accuracy:

±0.2%; +-0.1%; +-0.5%

Diameter:	25-400MM
Accuracy:	±0.2%; +-0.1%; +-0.5%

Description

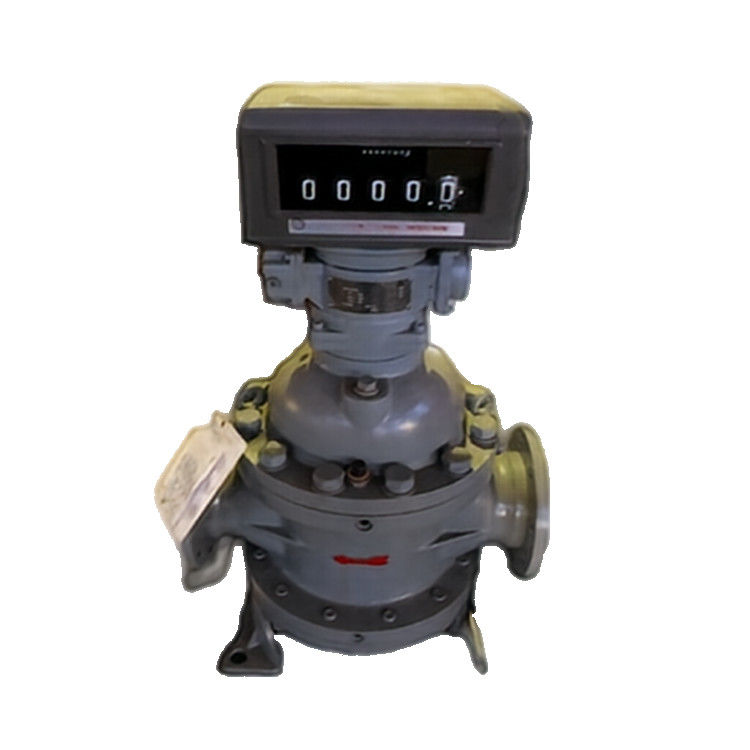

SBF Scrape-board Flowmeter

Description

SBF Series Scrape-board Flow Meter (Also called Rotary Vane Flow Meter) is a new type, particular designed, precise process and assembling positive displacement Flow meter. It has only one rotator circling with uniform Velocity. With feature of precise measurement, smooth Running, low noise, long service lifetime. It is widely used to measure all kinds of viscous liquids. JSQ-2 Mechanical register for volume indication with 5 large digits numerical reset & 8 digital no reset totalizer. Liter, Cubic meter, Gallon units for options

Characteristics

High accuracy and repeatability
Smooth running, low noise and vibration
Low maintenance and long life service
Low pressure loss drop
Double case
Used for a wide range of viscous liquids

Technical Specification

Item	Specification
Accuracy	±0.1%, ±0.2%, ±0.5%
Repeatability	0.03%
Nominal Diameter	25-400mm
Working Temperature	-30℃~+80℃, -30℃~+120℃, 100℃~+200℃
Ambient Temperature	-30℃~+60℃
Nominal Pressure	1.6Mpa, 2.5Mpa, 4.0Mpa, 6.4Mpa
Photoelectric Converter	ExdIICT6 Anti-explosion certificate No.:GYB03478 ExdIICT6 Anti-explosion certificate No.: GYB03479
Power Supply	12 or 24VDC, Frequency of pulse output: <10000Hz

Construction

SBF Scrape-board Flowmeter 0

Flow Range

Diameter	Range of flow (m3/h) Accuracy: ± 0.2% , ± 0.5%
	0.3~0.8mPa.s		0.8-2 mPa.s		2-5 mPa.s		5-400 mPa.s		400-2000 mPa.s		2000-5000 mPa.s		L/Pulses
	0.5	0.2	0.5	0.2	0.5	0.2	0.5	0.2	0.5	0.2	0.5	0.2	L/Pulses
25	3-10	5-10	2.8-10	4-10	1.6-10	3.2-10	1.2-10	1.6-10	0.5-6.4	0.8-6.4	0.5-4	0.8-4	0.01
40	3-12	5-13	2.8-14	4-16	1.6-106	3.2-16	1.2-14	1.6-14	0.5-6.4	0.8-6.4	0.5-4	0.8-4	0.01
50	7-28	9-28	6.5-31.5	8-31.5	3.5-3.5	7-35	3-31.5	6-31.5	2-20	2.8-15	1.2-12	2-10	0.1
80	14-56	18-56	13-63	16-64	7-70	14-70	6-60	12-60	4-40	6-30	2.5-25	4-18	0.1
100	20-80	25-80	18-90	23-90	10-100	20-100	9-90	18-90	5-50	9-45	3.5-35	6-30	0.1
150	54-216	70-210	48-240	60-240	27-270	54-270	24-240	48-240	12-120	22-110	9-90	16-80	0.1
200	80-320	106-320	72-36	90-360	40-400	80-400	36-360	70-360	18-180	36-180	15-150	24-120	0.1
250	120-480	160-480	108-540	135-540	60-600	120-600	54-540	110-540	24-240	50-240	20-200	36-180	0.1
300	200-800	260-800	180-900	255-900	100-1000	200-1000	90-900	180-900	40-400	80-400	35-3502	60-300	0.1
400	400-1600	540-1600	360-1800	450-1800	400-2000	400-2000	180-1800	360-1800	80-800	160-800	60-600	120-600	1

Diameter	Range of flow (m3/h) Accuracy: ± 0.1%
Diameter	0.8~2mPa.s	2-5mPa.s	5-100mPa.s	100-400mPa.s	400-2000mPa.s	2000-5000mPa.s	L/Pulses
50	9-21	9-28	9-28	7.5-24	5-15	3.5-10	0.01
80	18-42	18-54	18-54	18-48	10-28	7-18	0.1
100	25-60	25-80	25-80	20-70	15-45	10-30	0.1
150	70-180	70-220	70-220	55-200	40-108	25-80	0.1
200	106-280	100-320	100-320	80-280	60-180	40-120	0.1
250	160-420	150-480	150-480	120-420	90-240	60-180	0.1
300	260-700	250-4800	250-800	200-700	150-400	100-300	0.1
400	540-1400	500-1600	500-1600	400-1400	300-800	200-600	1

Application

SBF series flow meters are widely used in various fields such as petroleum, chemical, light industry, traffic and commercial industries etc.. It is especially suitable for measurement of industrial media such as: crude oil, residual oil, finished product oil and light hydrocarbon etc.
