FMC Gravity Unloading Meter Unit

Name: FMC Gravity Unloading Meter Unit
Brand: COWELL
SKU: FMC-50W, FMC-80W
Rating: 5 (179 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: FMC-50W, FMC-80W

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 20 Working days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            10.5Bar FMC Flow Meter, Gravity Unloading FMC Flow Meter, Gravity Unloading Meter Unit


Warranty:	2 Years	Customized Support:	OEM, ODM, OBM
Diameter:	50mm/2"; 80mm/3"; 100mm/4"	Flow Range:	38-380L/Min; 75-750L/Min; 150-1500L/Min
Accuracy:	±0.2%	Repeatability:	≤0.07%
Max.Pressure:	10.5Bar	Material:	Cast Iron
Model:	Wheel Mobile

Warranty:	2 Years
Customized Support:	OEM, ODM, OBM
Diameter:	50mm/2"; 80mm/3"; 100mm/4"
Flow Range:	38-380L/Min; 75-750L/Min; 150-1500L/Min
Accuracy:	±0.2%
Repeatability:	≤0.07%
Max.Pressure:	10.5Bar
Material:	Cast Iron
Model:	Wheel Mobile

Description

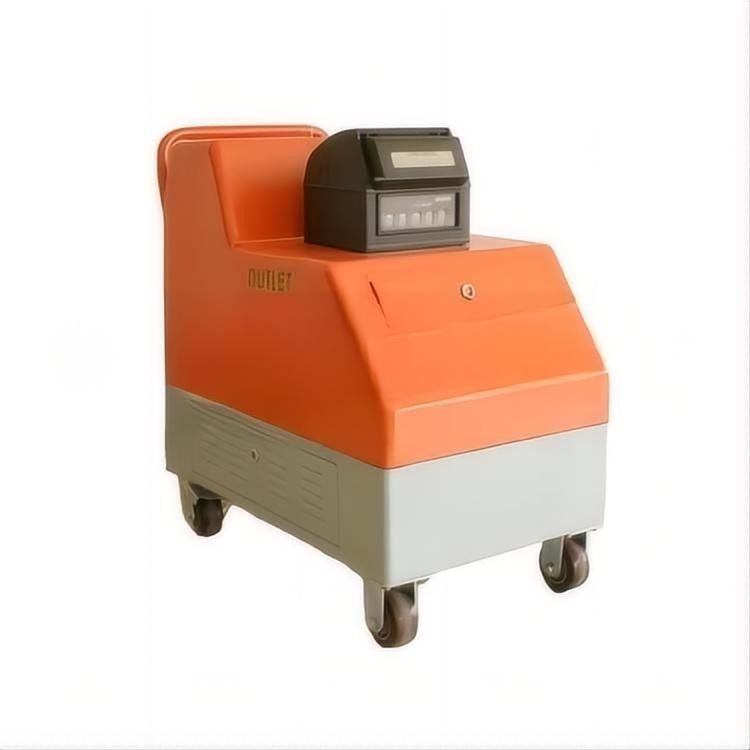

FMC Gravity Unloading Meter Unit

Description

FMC Gravity Unloading Meter Unit is intrinsic-safety measurement unit for gasoline, diesel, kerosene, with mechanical printer register, 5 digital subtotal display and printing, installed with quick hose adaptor for tank truck unloading, with advantage of ideal gravity unloading meter unit, low pressure drop, high accuracy, wide measurement range, low noise, etc.

Technical Specification

Model	FMC-50W	FMC-80W	FMC-100W
Flow Meter	FMC-50	FMC-80	FMC-100
Quick Hose Adaptor	50mm/2”	80mm/3”	100mm/4”
Mechanical Register & Printer	JSQ-4
Accuracy	±0.2%
