FMC-100 PD Flow Meter with Mechanical Register, Strainer & Air Eliminator

Name: FMC-100 PD Flow Meter with Mechanical Register, Strainer & Air Eliminator
Brand: COWELL
SKU: FMC-100
Rating: 4.8 (142 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: FMC-100

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 15-30 Working days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            fmc-100 positive displacement type flow meter, 150psi positive displacement meter, 150psi positive displacement type flow meter


Warranty:	2 Years	Diameter:	100mm/4"
Flow Range:	150-1500 L/Min	Max. Working Pressure:	10Bar/150PSI
Accuracy:	±0.2%	Repeatability:	≤0.07%
Max. Pressure:	10Bar/150PSI	Standard Measurement:	Liter/ US Gallon/ MP Gallon
Material:	Cast Iron

Warranty:	2 Years
Diameter:	100mm/4"
Flow Range:	150-1500 L/Min
Max. Working Pressure:	10Bar/150PSI
Accuracy:	±0.2%
Repeatability:	≤0.07%
Max. Pressure:	10Bar/150PSI
Standard Measurement:	Liter/ US Gallon/ MP Gallon
Material:	Cast Iron

Description

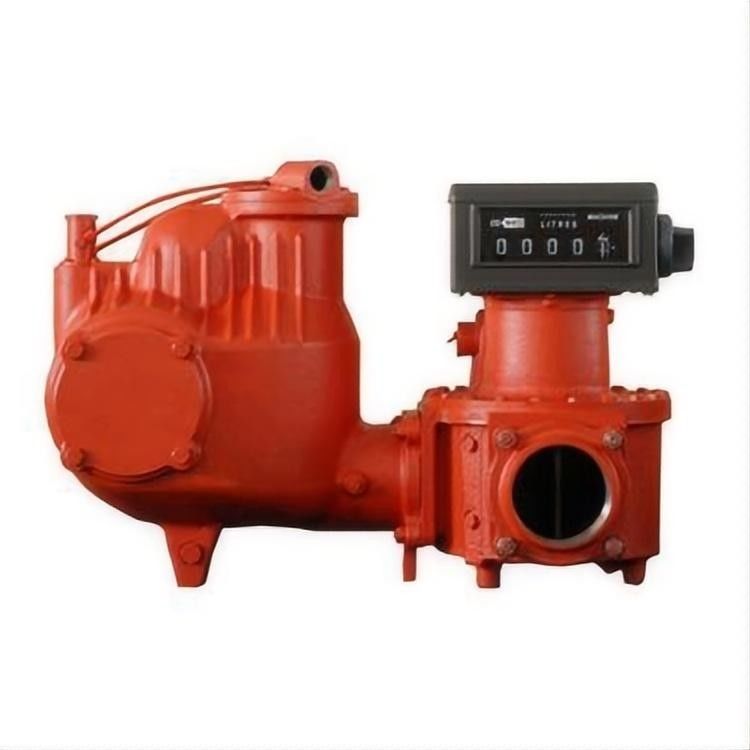

FMC-100 PD Flow Meter with Mechanical Register, Strainer & Air Eliminator

Characteristics

FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc..
Compact, versatile design can be readily fit into nearly all installations.
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.

Construction

FMC-100 PD Flow Meter with Mechanical Register, Strainer & Air Eliminator 1

Inlet & Outlet Installation

FMC-100 PD Flow Meter with Mechanical Register, Strainer & Air Eliminator 2

Application

Application includes: blending, batching, dispensing, inventory control and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
