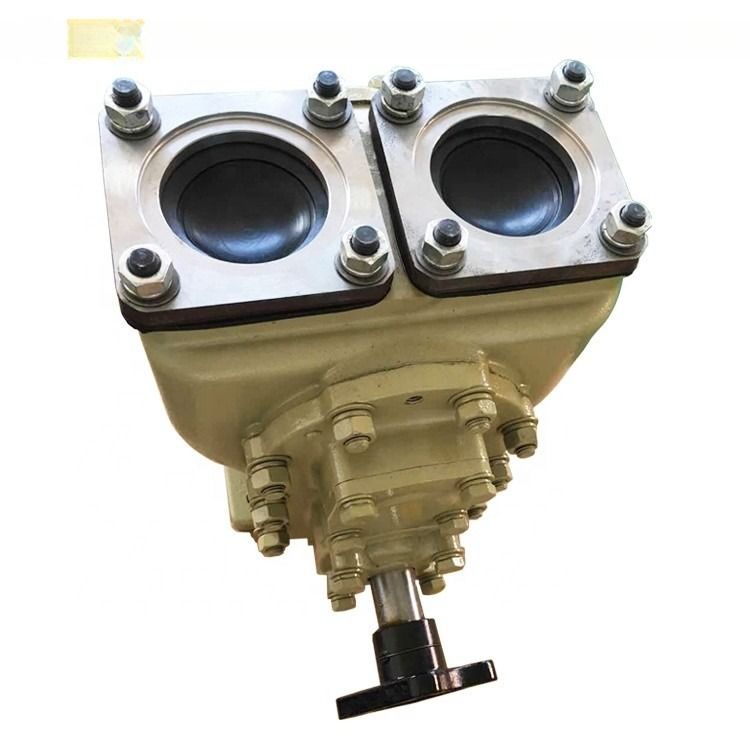

YGP-50 Gear Pump

YGP-50 Gear Pump

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. License

Model Number: YGP-50

Payment & Shipping Terms

Packaging Details: Hard Carton

Delivery Time: 7-15 Working days

Payment Terms: T/T

Supply Ability: 2000 Piece/Pieces per Week

Get Best Price
Contact Now
Specifications
Highlight:

YGP-50 Gear Pump

,

Diesel Gear Pump

,

YGP-50 Screw Gear Pump

Diameter:
50mm/2"
Flow Rate:
300L/Min
Delivery Head:
30M
Suction Head:
5M
Speed Range:
700-125RPM
Application:
Diesel, Bio-diesel Etc
Diameter:
50mm/2"
Flow Rate:
300L/Min
Delivery Head:
30M
Suction Head:
5M
Speed Range:
700-125RPM
Application:
Diesel, Bio-diesel Etc
Description

YGP-50 Gear Pump





Description



YGP Series screw gear pump use two screw gears to transfer various viscous and volatile liquids but no solid granual, such as gasoline, diesel, kerosene, and lubricated oil etc. with advantage of compact size, high flow rate, big delivery head, low noise and high suction vacuum. The pump is equipped with relief valve. It is an ideal pump for tax fuel vehicles, oil tank trucks and also transportation of other vapor-liquid mixture liquids etc.. Surge-controlled pump, the latest model of oil pump, is equipped with self-regulating valve, which can regulate the pressure of inner pump.





Technical Specification



Model YGP-50 YGP-80A
Size 2" 3"
Flow Rate 300L/Min 1000L/Min
Delivery Head 30M 60M
Suction Head 5M 7M
Speed Range 700-1250RPM
Rated Speed 960RPM
Working Pressure 0-0.3Mpa 0-0.5Mpa
Bypass Valve Yes No
Material Aluminum Aluminum/Iron
Motor Power 2.2Kw 11Kw
