YGP-80A Gear Pump With Bypass Valve

Name: YGP-80A Gear Pump With Bypass Valve
Brand: COWELL
SKU: YGP-80A
Rating: 4.7 (145 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: YGP-80A

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    YGP-80A Gear Pump, Bypass Valve Gear Pump, YGP-80A Screw Gear Pump


Warranty:	3 Years	Diameter:	80mm/3''
Flow Rate:	1000L/Min	Delivery Head:	60M
Suction Head:	7M	Application:	Industrial Utilities, Diesel Transfer

Warranty:	3 Years
Diameter:	80mm/3''
Flow Rate:	1000L/Min
Delivery Head:	60M
Suction Head:	7M
Application:	Industrial Utilities, Diesel Transfer

Description

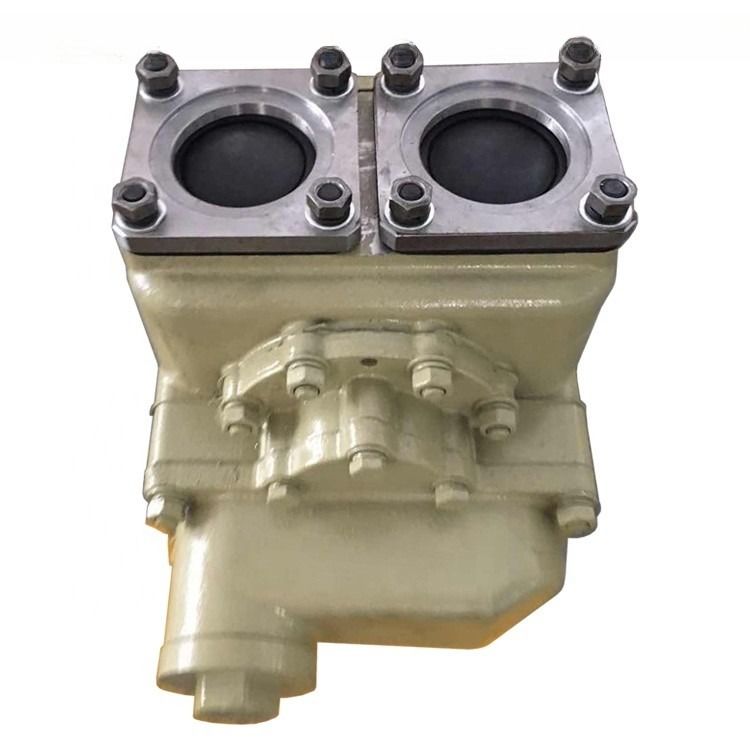

YGP-80A Gear Pump with Bypass Valve

Description

YGP Series screw gear pump use two screw gears to transfer various viscous and volatile liquids but no solid granual, such as gasoline, diesel, kerosene, and lubricated oil etc. with advantage of compact size, high flow rate, big delivery head, low noise and high suction vacuum. The pump is equipped with relief valve. It is an ideal pump for tax fuel vehicles, oil tank trucks and also transportation of other vapor-liquid mixture liquids etc.. Surge-controlled pump, the latest model of oil pump, is equipped with self-regulating valve, which can regulate the pressure of inner pump.

Technical Specification

Model	YGP-50	YGP-80A
Size	2"	3"
Flow Rate	300L/Min	1000L/Min
Delivery Head	30M	60M
Suction Head	5M	7M
Speed Range	700-1250RPM
Rated Speed	960RPM
Working Pressure	0-0.3Mpa	0-0.5Mpa
Bypass Valve	Yes	No
Material	Aluminum	Aluminum/Iron
Motor Power	2.2Kw	11Kw
