JYB-1 Electric Gear Oil Pump

Name: JYB-1 Electric Gear Oil Pump
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: JYB-1
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Model Number: JYB-1

Payment & Shipping Terms

Packaging Details: Strong carton

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            JYB-1 Electric Gear Oil Pump, JYB-1 Gear Oil Electric Pump, JYB-1 Electric Gear Pump


Diameter:	25mm/1"	Voltage:	220V Or 380V
Flow Rate:	9-15LPM	Pressure:	12Bar
Noise:	70dB(A Class)	Vacuum:	0.032Mpa
Application:	Gear Oil, Lubricating Oil

Diameter:	25mm/1"
Voltage:	220V Or 380V
Flow Rate:	9-15LPM
Pressure:	12Bar
Noise:	70dB(A Class)
Vacuum:	0.032Mpa
Application:	Gear Oil, Lubricating Oil

Description

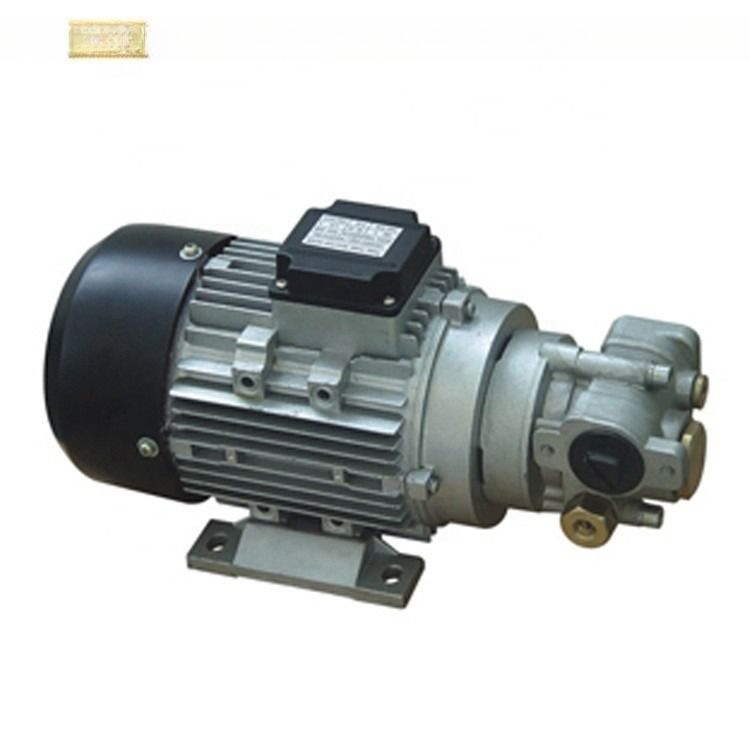

JYB-1 Electric Gear Oil Pump

Description

JYB-1 electric gear oil pump is designed for various requirements of pumping oils & lubricants, with the construction of die-cast aluminum pump body, by-pass valve, sintered steel gears, mechanical seal on the motoer shaft, with the advantage of quiet operation, high suction capacity/compact design.

Techanical Specification

Model	JYB-1
Diameter:	1"
Flow Rate:	9-15L/Min
Pressure:	12Bar
Noise:	70dB
Power:	Single Phase AC220V/50Hz/750W
Power:	Three Phase AC380V/50Hz/900W
Vacuum:	0.032Mpa
