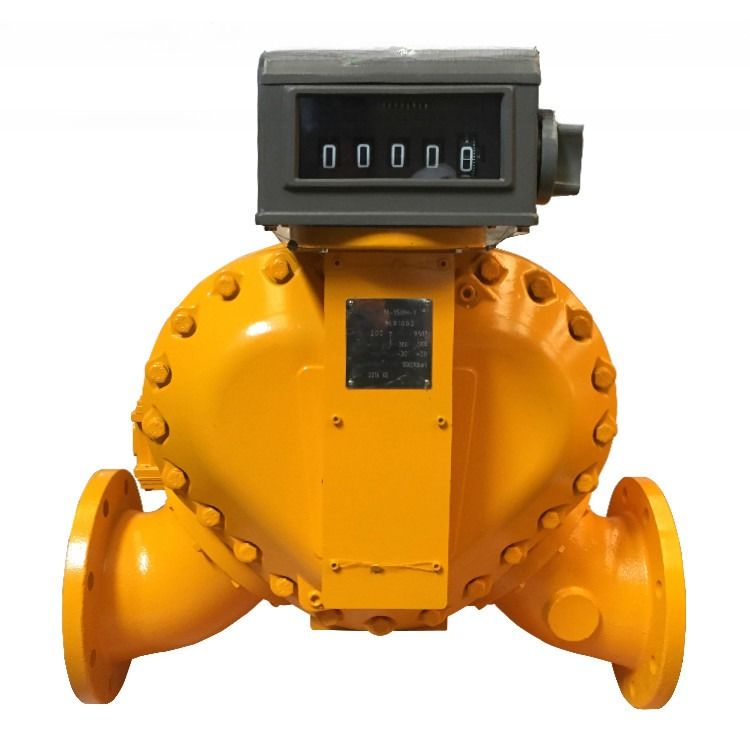

M-150-1 Bulk Flow Control PD Flow Meter for Aviation Refuelling

Name: M-150-1 Bulk Flow Control PD Flow Meter for Aviation Refuelling
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: M Series
Price: 440.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: Cowell

Certification: CE

Model Number: M Series

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 10-15 Working days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Fuel Tank Flow Meter, Heavy Duty Flow Meters for Oil Storage, Oil Distribution Flow Meter


Warranty:	2 Years	Customized Support:	OEM, ODM, OBM
Diameter:	150mm/6''	Flow Range:	225-2250L/Min Or 300~3000 L/Min
Volume/Rev.:	9.507L	Max. Pressure:	25Bar/350PSI
Accuracy:	±0.2%	Repeatability:	0.05%
Standard Measurement:	Liter / US Gallon / IMP Gallon	Viscosity:	30SSU~1,500,000SSU
Material:	Aluminum

Warranty:	2 Years
Customized Support:	OEM, ODM, OBM
Diameter:	150mm/6''
Flow Range:	225-2250L/Min Or 300~3000 L/Min
Volume/Rev.:	9.507L
Max. Pressure:	25Bar/350PSI
Accuracy:	±0.2%
Repeatability:	0.05%
Standard Measurement:	Liter / US Gallon / IMP Gallon
Viscosity:	30SSU~1,500,000SSU
Material:	Aluminum

Description

M-150-1 Positive Displacement Flow Meter

Characteristics

Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction

Technical Data

Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
