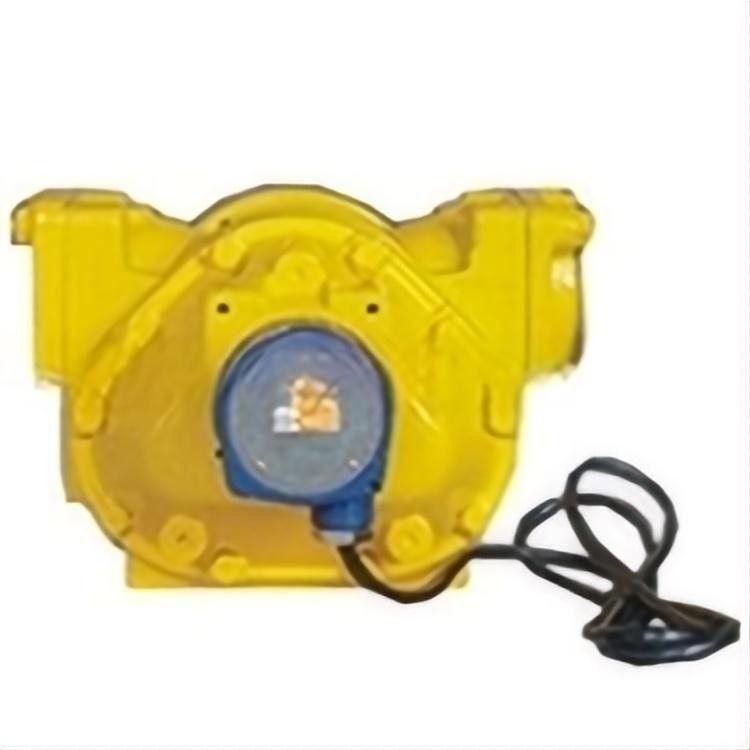

M-80-P-1 PD Flow Meter with Pulser

M-80-P-1 PD Flow Meter with Pulser

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Model Number: M-80-P-1

Payment & Shipping Terms

Packaging Details: Hard Carton

Delivery Time: 5-15 Working Days

Get Best Price
Contact Now
Specifications
Highlight:

M-80-P-1 Positive Displacement Meter

,

Positive Displacement Meter Types PD

,

Meter Types PD With Pulser

Warranty:
2 Years
Customized Support:
OEM, ODM
Diameter:
80mm/3''
Accuracy:
±0.1%
Flow Range:
75-750L/Min Or 115-1150L/Min
Pressure:
10Bar/150PSI
Repeatability:
≤0.05 %
Volume Per Revolution:
1.839L
Measurement:
Liter/US Gallon/IMP Gallon
Application:
Oils Transfer
Warranty:
2 Years
Customized Support:
OEM, ODM
Diameter:
80mm/3''
Accuracy:
±0.1%
Flow Range:
75-750L/Min Or 115-1150L/Min
Pressure:
10Bar/150PSI
Repeatability:
≤0.05 %
Volume Per Revolution:
1.839L
Measurement:
Liter/US Gallon/IMP Gallon
Application:
Oils Transfer
Description

M-80-P-1 PD Flow Meter with Pulser





Characteristics



  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction





Technical Data



Model M-40-1 M-50-1 M-50H-1 M-80-1 M-80H-1 M-100-1 M-100H-1 M-150-1 M-150H-1
Size 40mm /1.5" 50mm / 2 " 80mm / 3 " 100mm / 4 " 150mm / 6 "
Flow Range
(L/Min)
25-250 38-380 55-550 75-750 115-1150 130-1300 170-1700 225-2250 300-3000
Volume/Rev. 0.309L 0.681L 1.839L 5.102L 9.507L
Max.Pressure 10Bar/150PSI 25Bar/350PSI
Accuracy ±0.2%
Repeatability ≤0.05%
Standard Measurement Liter / US Gallon/IMP Gallon
Viscosity 30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.







Constructure



M-40-1 Positive Displacement Flow Meter 0





M-40-1 Positive Displacement Flow Meter 1



M-40-1 Positive Displacement Flow Meter 2

M-40-1 Positive Displacement Flow Meter 3





M-40-1 Positive Displacement Flow Meter 4
