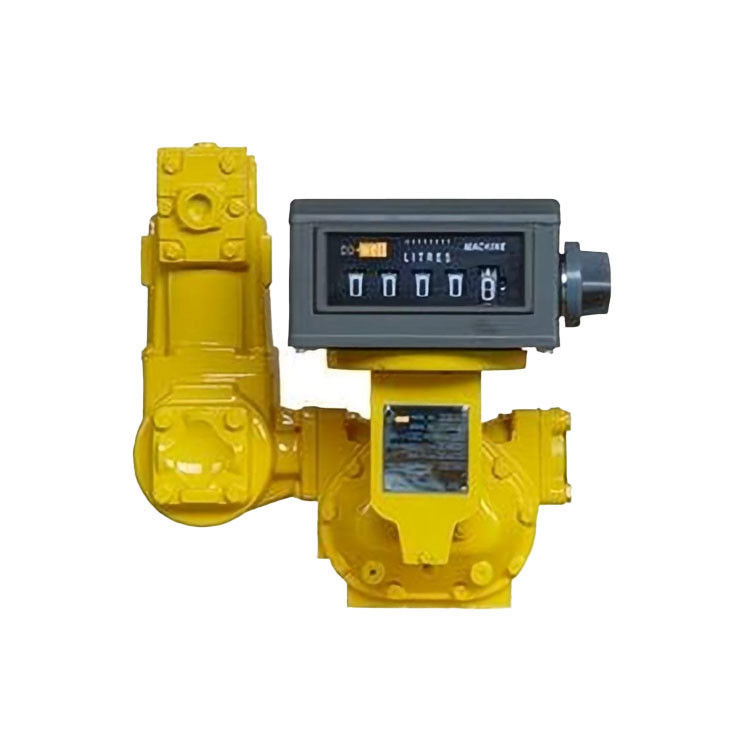

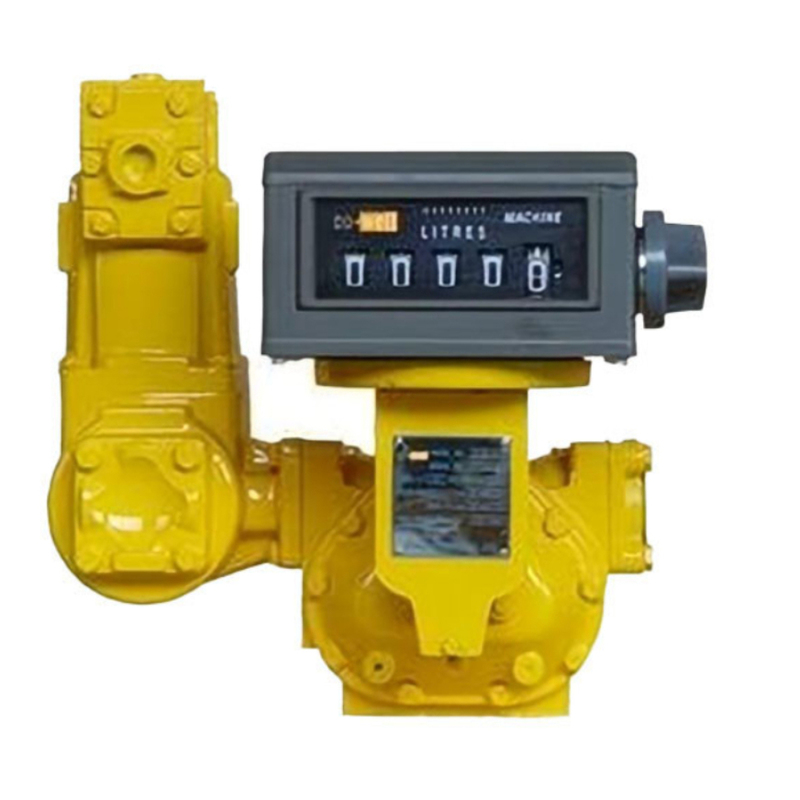

M-40-1 Positive Displacement Flow Meter

M-40-1 Positive Displacement Flow Meter
M-40-1 Positive Displacement Flow Meter
M-40-1 Positive Displacement Flow Meter
M-40-1 Positive Displacement Flow Meter
M-40-1 Positive Displacement Flow Meter

M-40-1 Positive Displacement Flow Meter

Product Details

Place of Origin: Shanghai, China

Brand Name: Cowell

Certification: CE

Model Number: M-40-1

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 3-20 working days

Payment Terms: By T/T in advance, L/C

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

ce pd type flow meter

,

m-40-1 pd type flow meter

,

m-40-1 displacement type flow meter

Warranty:
2 Years
Customized Upport:
OEM, ODM
Diameter:
M-40-1
Volume Rev:
40mm/1.5''
Flow Range:
25-250LPM
Max. Pressure:
0.2%
Repeatability:
≤0.05%
Material:
Aluminum
Application:
Gasoline, Fuel, Diesel, Kerosene Etc
Warranty:
2 Years
Customized Upport:
OEM, ODM
Diameter:
M-40-1
Volume Rev:
40mm/1.5''
Flow Range:
25-250LPM
Max. Pressure:
0.2%
Repeatability:
≤0.05%
Material:
Aluminum
Application:
Gasoline, Fuel, Diesel, Kerosene Etc
Description

M-40-1 Positive Displacement Flow Meter





Characteristics



  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction





Technical Data



  Model

M-40-1

M-50-1

M-50H-1

M-80-1

M-80H-1

M-100-1

M-100H-1

M-150-1

M-150H-1

  Size

40mm /1.5"

50mm / 2 "

80mm / 3 "

100mm / 4 "

150mm / 6 "

  Flow Range
  (L/Min)

25-250

38-380

55-550

75-750

115-1150

130-1300

170-1700

225-2250

300-3000

  Volume/Rev.

0.309L

0.681L

1.839L

5.102L

9.507L

  Max.Pressure

10Bar/150PSI

25Bar/350PSI

  Accuracy

±0.2%

  Repeatability

≤0.05%

  Standard Measurement

 Liter / US Gallon/IMP Gallon

  Viscosity

30SSU~1,500,000SSU

 Note:4"&6" flange available for M-150/6" Meter.







Constructure



M-40-1 Positive Displacement Flow Meter 0





M-40-1 Positive Displacement Flow Meter 1



M-40-1 Positive Displacement Flow Meter 2

M-40-1 Positive Displacement Flow Meter 3





M-40-1 Positive Displacement Flow Meter 4
