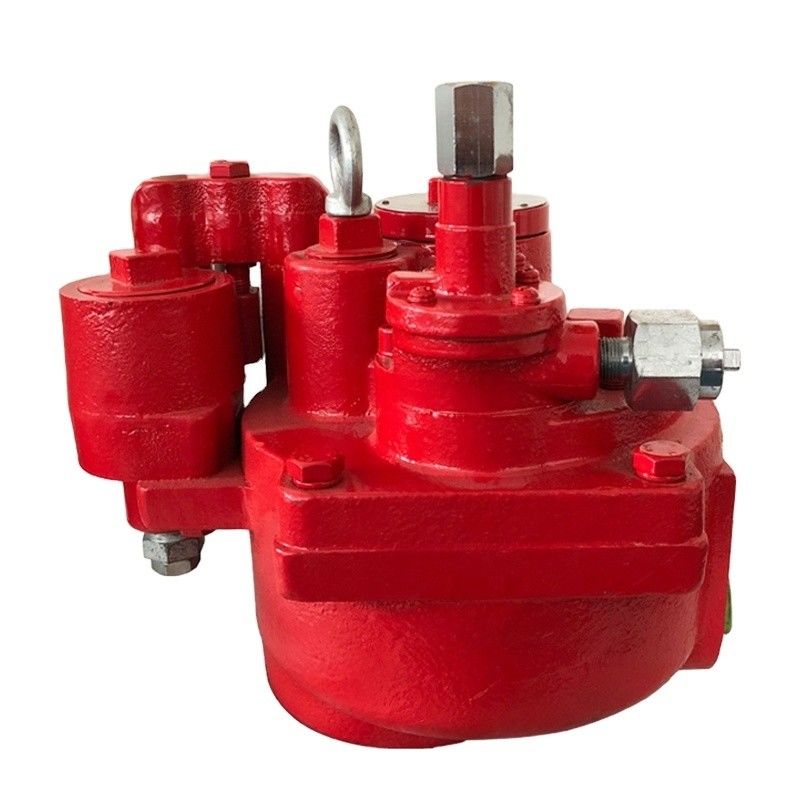

YB-240 Submersible Turbine Pump

Name: YB-240 Submersible Turbine Pump
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: QYB-240R
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CE

Model Number: QYB-240R

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 3-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Electric Submersible Pump, Submersible Turbine Pump, Tank Oil Submersible Pump


Inlet:	BSPF/NPT1/2''	Outlet:	NPT2''
Voltage:	220VAC/50Hz/60Hz, 380VAC/50Hz	Power:	0.75KW,1.1KW,1.3KW

Inlet:	BSPF/NPT1/2''
Outlet:	NPT2''
Voltage:	220VAC/50Hz/60Hz, 380VAC/50Hz
Power:	0.75KW,1.1KW,1.3KW

Description

YB-240 Submersible Turbine Pump

A. Best performance, long time service, lower noise
B. Easy to install and service. Quick, simple and safe electrical
connections
C. Manifold allows for vertical or horizontal discharge
D. Save time, lower service costs
E. Built with check valve, by pass valve, vacuum valve
F. For diesel, gasoline, kerosene, etc.
G. Vapor-free, suction head longer than suction pump

Technical Specification

Max Flow Rate	200L/min, 240L/min, 260L/Min
Rotating Speed	2820rmp
Voltage	220V,50Hz
Current	9A
Power	0.75KW/1HP;1.1Kw/1.5H;1.3Kw/1.8H
Ex-proof Class	IP×6
Fixation Thread	BSPF4" BSPF/NPT4"
Inlet	BSPF1 1/2 " BSPF/NPT1 1/2 "
Outlet	NPT2"
Adjustable Pressure	21KPa-207KPa
Factory Pressure Range	79KPa-93KPa
Working Pressure	＞34KPa
Rating Pressure	0.1MPa

Package Data

Package	1pc/2cartons
Net Weight	40kgs
Gross Weight	41kgs
Dimension	360×280×370mm
	730×170×170mm

Construction

YB-240 Submersible Turbine Pump 0
