ZCH-50/80 Gas Filling Station Gear Pump

Name: ZCH-50/80 Gas Filling Station Gear Pump
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: ZCH-50/80
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. License

Model Number: ZCH-50/80

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Wooden case applicable for export

Delivery Time: 3-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Gas Pump for gas stations, Fuel Pump for fueling stations, Gear Pump for fuel dispensers


Flow Rate:	45~85L/min	Accuracy:	±0.2%
Speed:	900RPM	Working Pressure:	0.18-0.24Mpa

Flow Rate:	45~85L/min
Accuracy:	±0.2%
Speed:	900RPM
Working Pressure:	0.18-0.24Mpa

Description

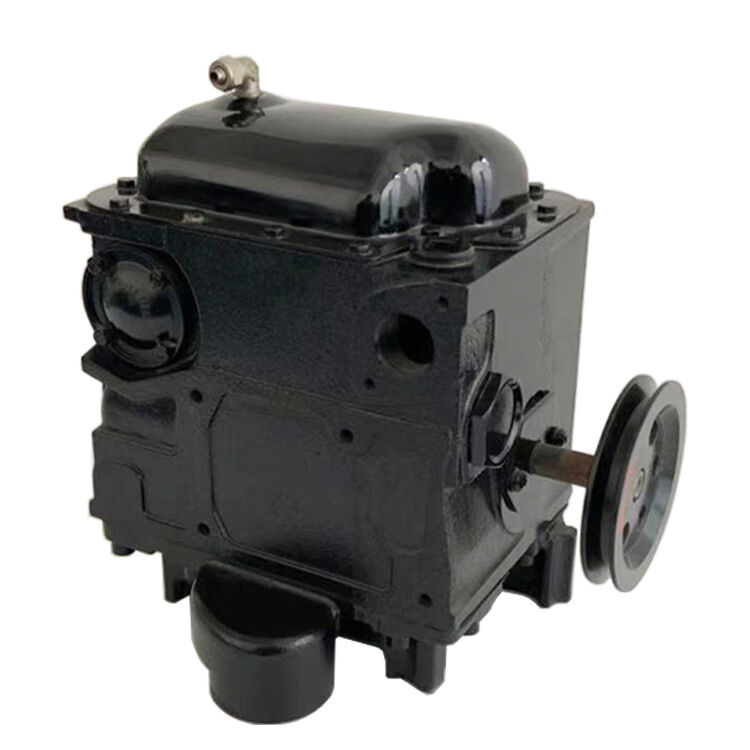

ZCH-50/80 Gas Filling Station Gear Pump

ZCH-50/ZCH-80 Gear Pump, made by cast lron, is applicable to gasoline, kerosene, diesel and gasohol with A type and B type inlets and air separator, by pass valve , check valve, inlet filter are built in.

Construction

ZCH-50/80 Gas Filling Station Gear Pump 0

Technical Specification

Model	ZCH-50	ZCH-80
Flow Range	45～55L/Min	75～85L/Min
Speed	900RPM	900RPM
Vacuum	0.06MPa	0.06MPa
Working Pressure	0.18~0.24MPa	0.18~0.24MPa
Noise	≤72dB	≤72dB

Package Data

Package	1pc/carton
Net Weight	37 kgs
Gross Weight	42 kgs
Dimension	400×300×280mm
