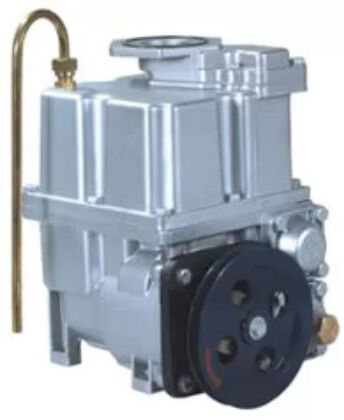

ZYB-50/80ABC Gas Filling Station Vane Pump

Name: ZYB-50/80ABC Gas Filling Station Vane Pump
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: ZYB-50/80ABC
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. License

Model Number: ZYB-50/80ABC

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden case applicable for export

Delivery Time: 3-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Vane Pump for Gas, Fuel Pump, Fuelling Pump


Flow Rate:	45-85L/Min	Speed:	630RPM
Working Pressure:	0.16~0.2MPa	Vacuum:	≥0.054MPa

Flow Rate:	45-85L/Min
Speed:	630RPM
Working Pressure:	0.16~0.2MPa
Vacuum:	≥0.054MPa

Description

TeZYB-50/80ABC Gas Filling Station Vane Pump

ZYB-50/ZYB-80 Vane Pump, built in air separator, by pass valve, filter, is with three different top covers for different connecting pipes. A type. B type and C type. With the advantage of low noise, high flow rate, long life service, etc .

ZYB-50/80ABC Gas Filling Station Vane Pump 0
A Type B Type C Type

Technical Specification

Model	ZYB-50	ZYB-80
Flow Range	45～65L/Min	75～85L/Min
Speed	630RPM	630RPM
Vacuum	≥0.054MPa	≥0.054MPa
Working Pressure	0.16~0.2MPa	0.2~0.25MPa
Noise	≤72dB	≤72dB

Package Data

Package	1pc/carton	1pc/carton
Net Weight	17 kgs	17 kgs
Gross Weight	17.5 kgs	17.5 kgs
Dimension	340×260×370mm	340×260×370mm

Construction
ZYB-50/80ABC Gas Filling Station Vane Pump 3

RSJ-50 Flow Meter &

ZYB-50B Vane Pump
