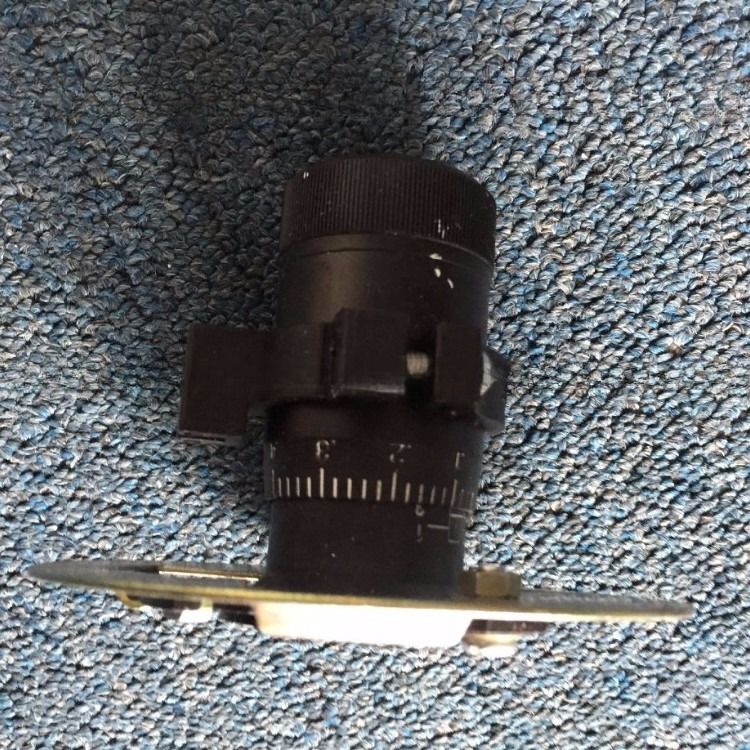

Fuel Liquid Control Flow Meter Calibrator Gear Plate Flowmeter Parts

Name: Fuel Liquid Control Flow Meter Calibrator Gear Plate Flowmeter Parts
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: M series
Price: 80.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: cowell

Model Number: M series

Payment & Shipping Terms

Price: $60.00 - $100.00/pieces

Packaging Details: wooden inch 3 diesel flow meter with mechanical register,preset register,strainer & air eliminator

Supply Ability: 3000 Unit/Units per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Fuel Liquid Control Flow Meter, Liquid Control Flow Meter Calibrator, Gear Plate Flowmeter Parts


Product Name:	Digital Water Flow Meter	Accuracy:	±0.2%
Flow Range:	115-1150L/Min	Application:	Petroleum,oil, Fuel,chemical,marie,water
Port:	Shanghai For Digital Water Flow Meter

Product Name:	Digital Water Flow Meter
Accuracy:	±0.2%
Flow Range:	115-1150L/Min
Application:	Petroleum,oil, Fuel,chemical,marie,water
Port:	Shanghai For Digital Water Flow Meter

Description

LC diese positive displacement flow meter Calibrator 2" 3"

Fuel Liquid Control Flow Meter Calibrator Gear Plate Flowmeter Parts

Characteristics

• Excellent stepless adjusting mechanism allows a micro adjustment of the meter

• High accuracy and repeatability over the widest range of flow; Superior accuracy
at constant flow

• Low maintenance, no metal-to-metal contact in measuring chamber, long life service

• Low pressure loss, a true gravity flow meter

• Accuracy regardless of pressure fluctuations, temperature variation, viscosity

• Choice of aluminum, cast iron and stainless steel materials of construction

Technical Specification
Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm / 1.5”	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume /Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max. Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
