Tank Truck Parts Anti-Overflow Pressure Sensor and Socket Aluminum 5A02 Body Material

Name: Tank Truck Parts Anti-Overflow Pressure Sensor and Socket Aluminum 5A02 Body Material
Brand: oem/cowell
SKU: cowell
Price: 100.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Details

Place of Origin: Zhejiang, China

Brand Name: oem/cowell

Model Number: cowell

Payment & Shipping Terms

Price: $100.00 - $200.00/pieces

Packaging Details: Carton foranti-overflow Optical sensor & socket tank truck fittings

Supply Ability: 3000 Unit/Units per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Usage:	PRESSURE SENSOR	Theory:	Optical Sensor
Output:	Digital Sensor	Product Name:	Anti-overflow Optical Sensor & Socket Tank Truck Fittings
Body Material:	Aluminum 5A02	Sensor Length:	180mm Or 300mm
Port:	Shanghai For Anti-overflow Optical Sensor & Socket Tank Truck Fittings

Usage:	PRESSURE SENSOR
Theory:	Optical Sensor
Output:	Digital Sensor
Product Name:	Anti-overflow Optical Sensor & Socket Tank Truck Fittings
Body Material:	Aluminum 5A02
Sensor Length:	180mm Or 300mm
Port:	Shanghai For Anti-overflow Optical Sensor & Socket Tank Truck Fittings

Description

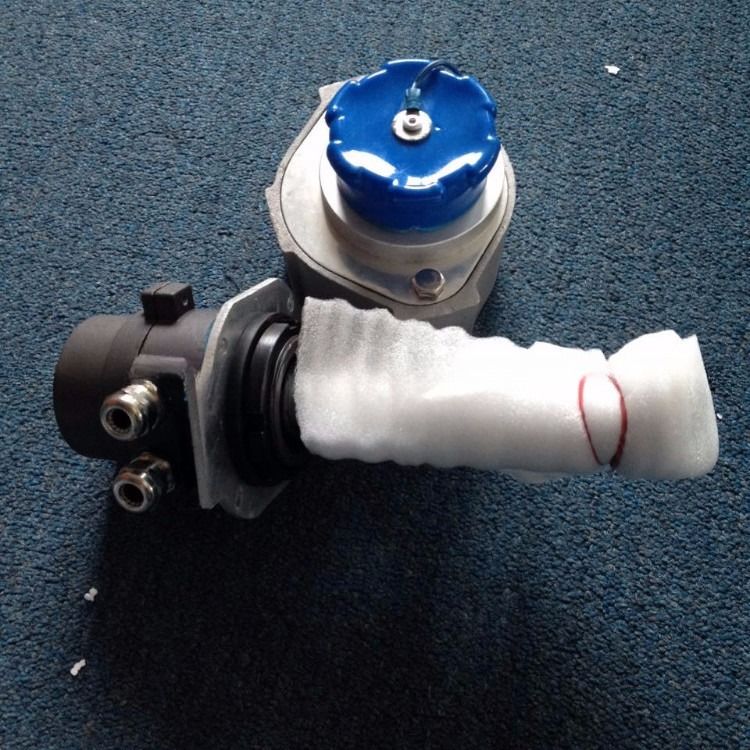

Anti-overflow Optical Sensor & Socket

Optical sensor is installed on the manhole top of the tank for anti-overflow protection. It is monitoring the limit of warning line in the process of tank oil loading. While the oil rises to the warning line, the sensor occurs warning to prevent the leakage of oil or overfilled. It is the most security limit of communication systems. It is 5 wires.

The Overfill Prevention Sockets are designed for optimal tank-truck to rack system communications. The sockets conform to API standards.

Tank Truck Parts Anti-Overflow Pressure Sensor and Socket Aluminum 5A02 Body Material 0

Anti-overflow Optical Sensor & Socket

Technical Data

1. Body Material: Aluminum 5A02

2. Signal Line:5 wires cables, Pressure shock voltage 500VAC

3. Operating voltage 12VDC, Operating current<50MA

3. Working temperture:-40℃~+60℃

4. Response time<1S

5. Anti-explosion range:ExiaIIAT3

6. Sensor length: 180mm or 300mm

Tank Truck Parts Anti-Overflow Pressure Sensor and Socket Aluminum 5A02 Body Material 1
