Anti-Overflow Optic Sensor and Socket Essential for Oil Tank Truck Overfill Detection

Name: Anti-Overflow Optic Sensor and Socket Essential for Oil Tank Truck Overfill Detection
Brand: cowell
SKU: Optic Sensor
Price: 135.00 USD
Availability: InStock
Rating: 4.9 (142 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: cowell

Model Number: Optic Sensor

Payment & Shipping Terms

Price: $135.00 - $235.00/sets

Packaging Details: carton

Supply Ability: 5000 Unit/Units per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Usage:	Level Sensor	Theory:	Optical Sensor
Output:	Digital Sensor	Product Name:	Optical Sensor With Socket
Application:	Verfill Detection System	Material:	Aluminum
Port:	Shanghai

Usage:	Level Sensor
Theory:	Optical Sensor
Output:	Digital Sensor
Product Name:	Optical Sensor With Socket
Application:	Verfill Detection System
Material:	Aluminum
Port:	Shanghai

Description

Anti-overflow Optic sensor and Socket for oil tank truck overfill detection system

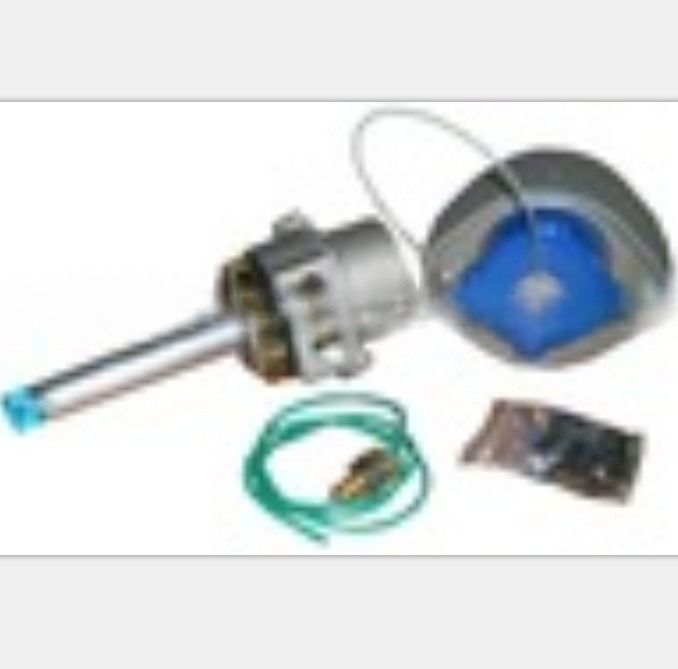

Anti-overflow Optical Sensor & Socket

Optical sensor is installed on the manhole top of the tank for anti-overflow protection. It is monitoring the limit of warning line in the process of tank oil loading. While the oil rises to the warning line, the sensor occurs warning to prevent the leakage of oil or overfilled. It is the most security limit of communication systems. It is 5 wires.

The Overfill Prevention Sockets are designed for optimal tank-truck to rack system communications. The sockets conform to API standards.

Technical Data

1. Body Material: Aluminum 5A02

2. Signal Line:5 wires cables, Pressure shock voltage 500VAC

3. Operating voltage 12VDC, Operating current<50MA

3. Working temperture:-40℃~+60℃

4. Response time<1S

5. Anti-explosion range:ExiaIIAT3

6. Sensor length: 180mm or 300mm


Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.	Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;	We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
