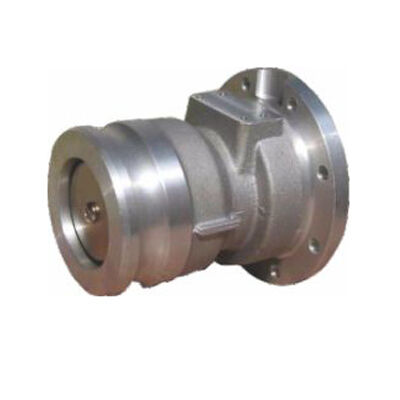

Vapor Recovery Valve

Description

Vapor recovery valve is installed on the manhole or on the top of the tanker.

When filling the tank truck, the Vapor Recovery Vent opens, the rising liquid

level pushes up the oil gas. Through the vapor recovery system, all vapors come

back into the tank truck. Tight sealing ensures the safety of the transportation, and

the reasonable design ensures the vapor recovery efficently.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Greater spring tension, tigher seal.
Higher rated flow, lower presure drop.
Easy installation
Available with all TTMA flange
Pneumatic control on the opening and closing
Meets EN13083 standard, flange meets the TTMA standard.

Material

Body: Aluminum alloy

Filter: Stainless Steel

Spring: Stainless Steel

Seal: NBR

Technical Specification
Model	YJ7507	YJ7508	YJ7509
Size	4"	4"	3"
Working pressure	0.6 Mpa
Temperature range	-20~70℃
Connection mode	Flange		Thread
Operating mode	Mechanical
Medium	Diesel, Gasoline, Kersene
