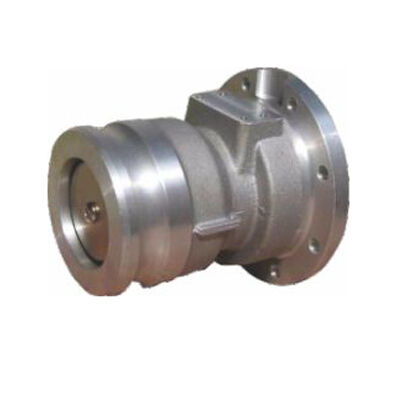

Vapor Recovery Adaptor

Name: Vapor Recovery Adaptor
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ7306 Series
Price: 90.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CNex

Model Number: YJ7306 Series

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Hard Carton

Delivery Time: 3-7 working days

Payment Terms: T/T

Supply Ability: On stock

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    vapor recovery valve adaptor, vapor recovery valve for fuel systems, vapor recovery valve for the tanker


Working Pressure:	6Bar	Operating Mode:	Mechanical
Size:	4"	Medium:	Diesel, Gasoline, Kerosene Etc

Working Pressure:	6Bar
Operating Mode:	Mechanical
Size:	4"
Medium:	Diesel, Gasoline, Kerosene Etc

Description

Vapor Recovery Valve

Description

Vapor recovery adaptor is installed on the recovery pipeline on the side of the tanker

with a free float poppet valve. Vapor recovery hose coupler connects with vapor recovery

adaptor while opening poppet valve. After completing unloading, the poppet valve remains

closed.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
4" female threads by 4" cam and groove
4" TTMA standard mounting flange
Easy installation
Stainless steel hardware, 3" vapor poppet valve
High flow and low pressure drop for quick loading and unloading
Two-position mounting holes for mounting air interlock valve
Meets API RP1004 & EN13083 Standard

Material

Body: Aluminum alloy

Filter: Stainless Steel

Spring: Stainless Steel

Seal: NBR

Technical Specification
Model	YJ7306F	YJ7306	YJ7306N	YJ7306
Size	4"	4"	4"	4*3"
Working pressure	0.6 Mpa
Temperature range	-20~70℃
Connection mode	Flange	4"NPT	Flange	3" BSPT
Operating mode	Mechanical
Medium	Diesel, Gasoline, Kersene etc
