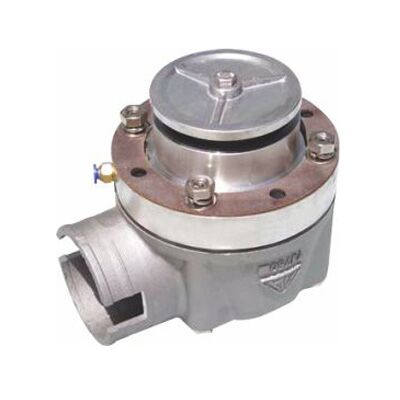

Vapor Recovery Pipe Control Valve

Name: Vapor Recovery Pipe Control Valve
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ7506
Price: 90.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CNex

Model Number: YJ7506

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Hard Carton

Delivery Time: 3-7 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Vapor recovery valve, Vapor gas Pipe control valve, Side Plate Valve


Working Pressure:	6Bar	Operating Method:	Pneumatic
Air Pressure Required:	4-8Bar	Connection:	Flange

Working Pressure:	6Bar
Operating Method:	Pneumatic
Air Pressure Required:	4-8Bar
Connection:	Flange

Description

Vapor Recovery Pipe Control Valve

Description

Vapor recovery pipe control valve is also called side plate valve. It is installed on

the top of the tank truck and back of the vapor recovery pipe. While loading or unloading,

the gas goes out through vapor recovery pipe control valve, it ensures the internal and external

pressure of the tank maintain balance. The exit direction should be from back down 45 degree.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Greater spring tension, tigher seal.
Higher rated flow, lower presure drop.
Easy installation
Available with all TTMA flange
Pneumatic control on the opening and closing
Meets EN13083 standard, flange meets the TTMA standard.

Material

Body: Aluminum alloy

Filter: Stainless Steel

Spring: Stainless Steel

Seal: NBR

Technical Specification
Model	YJ7506
Working pressure	0.6 Mpa
Air pressure required	0.4-0.8 Mpa
Temperature range	-20~70℃
Connection mode	Flange
Operating mode	Pneumatic
Medium	Diesel, Gasoline, Kersene
