M Series PD Flow Meter with Pulser on Mechanical Register

Name: M Series PD Flow Meter with Pulser on Mechanical Register
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: M-80-P-1; M-80H-P-1
Price: 440.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CE

Model Number: M-80-P-1; M-80H-P-1

Document: PS-100 Pulser Wiring Diagra...am.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Wooden Case applicable for export

Delivery Time: 7-10 Working Days

Payment Terms: T/T

Supply Ability: 500 Unit Per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    Flow Meter with Register Pulser, Mechanical Register  Pulser Flow Meter, Flow Meter with Pulses output & local display


Description

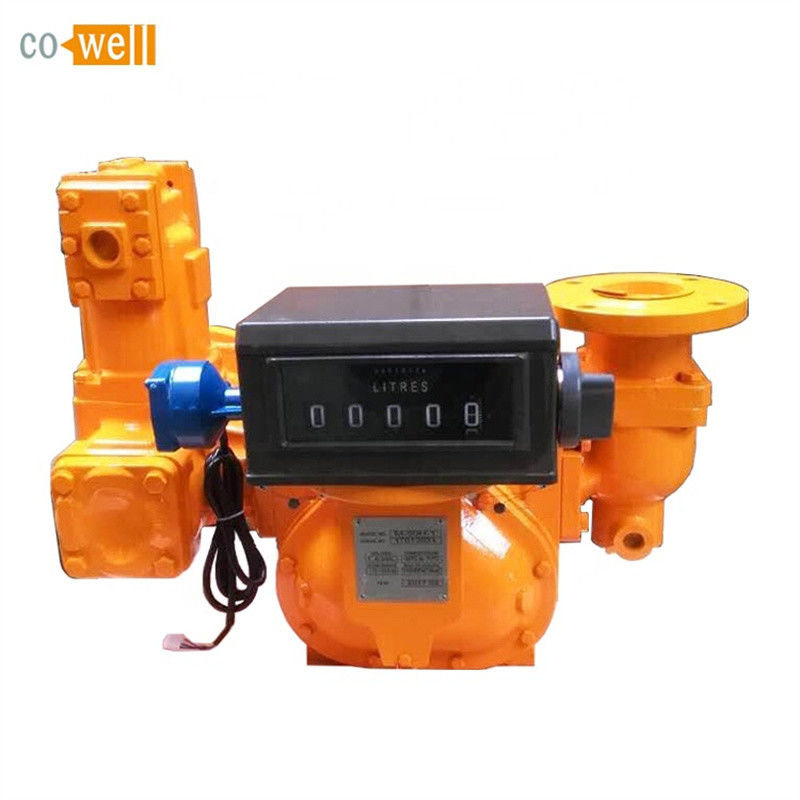

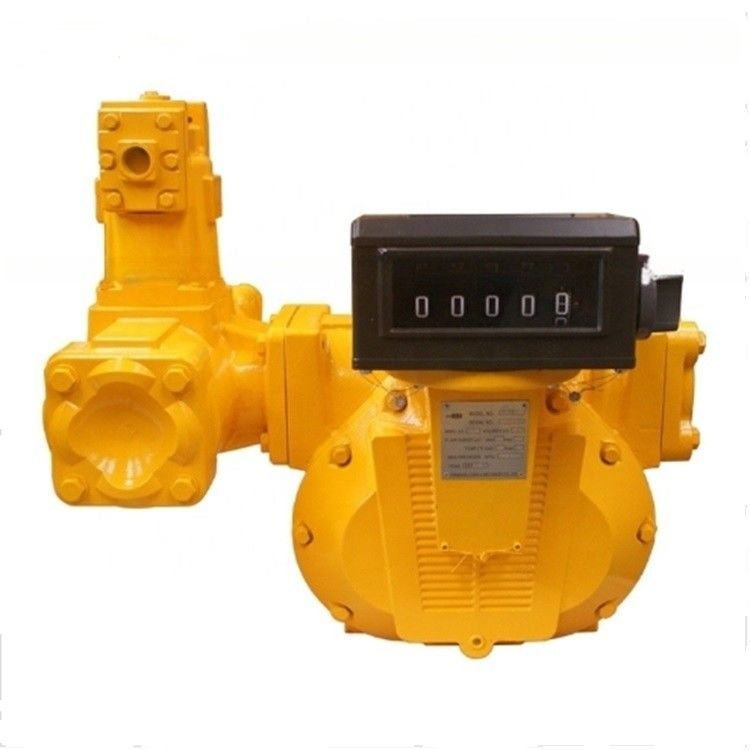

M-80-P-1 PD Flow Meter with Mechanical Register, Pulser, Strainer & Air Eliminator

Characteristics

Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction

Technical Data

Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
