Gear Plate For M Series PD Flow Meter

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Delivery Time: 3-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    PD Flow Meter Gear Plate, Gear wheels, mechanical flow meter counting


Application:

For M Series Flow Meter

Unit:

Liter, Gallon, M3

Application:	For M Series Flow Meter
Unit:	Liter, Gallon, M3

Description

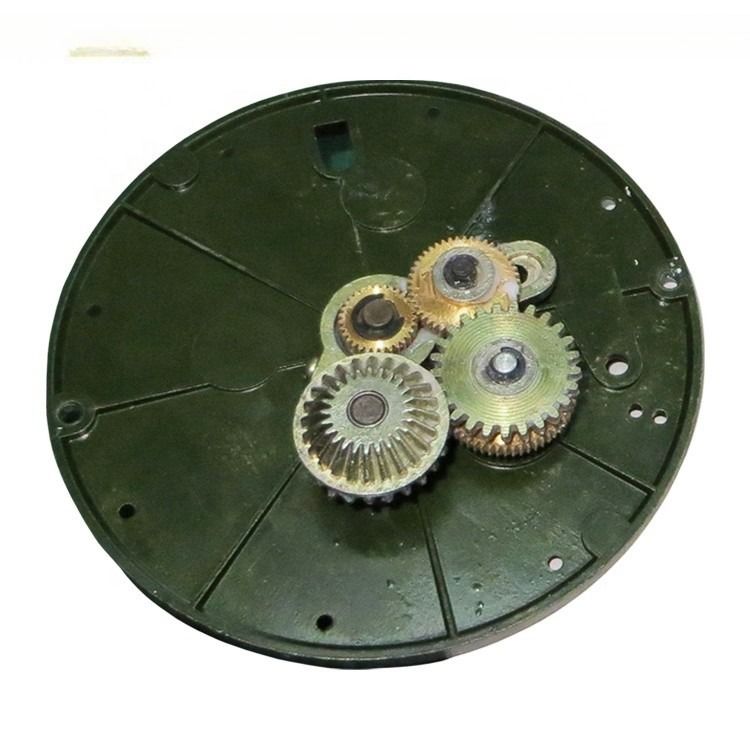

Gear Plate for M series PD Flow Meter

The gear plate is installed in the base of the mechanical counter to convert meter rotary shaft output to an engineered unit of measure. Changing unit of measure is simple through conversions of accessible gears.

The Gears in a mechanical flow meter plays a crucial role in accurate flow measurement and counting. As fluid passes through the meter, it rotates the gear wheel, which is precisely calibrated to correspond with the volume of the fluid. Each rotation of the flow meter gear wheel generates pulses or mechanical movements that are transferred to the counter, enabling precise tracking of total fluid consumption.

Technical Data

Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
