V-50 LPG Differential Valve

Name: V-50 LPG Differential Valve
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: V-50-LPG
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Model Number: V-50-LPG

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Delivery Time: 5-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            V-50 LPG Differential Valve, differential pressure valve, LPG flow system


Diameter:	DN50	Medium:	LPG
Flow Rate:	760L/Min	Material:	Aluminum
Pressure:	25Bar/350PSI

Diameter:	DN50
Medium:	LPG
Flow Rate:	760L/Min
Material:	Aluminum
Pressure:	25Bar/350PSI

Description

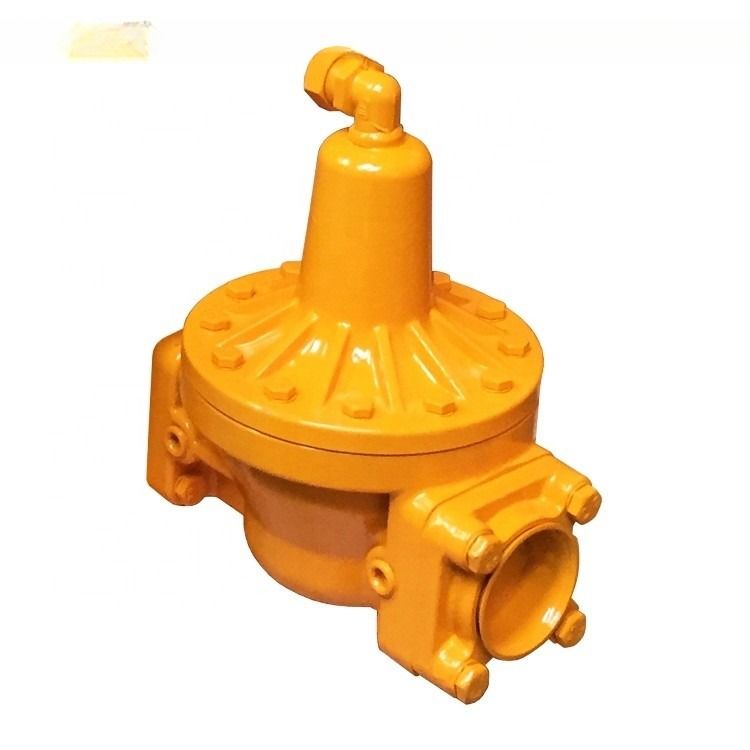

V-50 LPG Differential Valve

Characteristics

The differential valve is mounted at the outlet of the meter and connected with the vapor eliminator with the function to shut off the liquid flow whenever vapor occurs in the tube system. The valve maintains sufficient pressure to ensure the high-vapor pressure products, such as LPG & Anhydrous Ammonia (NH3) to be always remained in liquid state. The valve is spring loaded and to fail if closed.

Technical Specification

Model

Diameter

Used for Meter

Max. Flow Rate

L/Min

Material

Working Pressure

V-50-LPG

1.5"& 2"

M-40, M-50, M-50H

760

Aluminum

350PSI
