Sub Series Vane Pump

Name: Sub Series Vane Pump
Brand: COWELL
SKU: Sub Series
Rating: 4.6 (167 reviews)

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. License

Model Number: Sub Series

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Supply Ability: 2000 Piece/Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Sub Series Vane Pump, Positive Displacement Vane Pump, Positive Displacement Rotary Vane Pump


Size:	1.5" 2'' 3''	Flow Range:	180-500L/Min
Speed:	960RPM	Power:	1.5KW, 2.2KW, 4KW

Size:	1.5" 2'' 3''
Flow Range:	180-500L/Min
Speed:	960RPM
Power:	1.5KW, 2.2KW, 4KW

Description

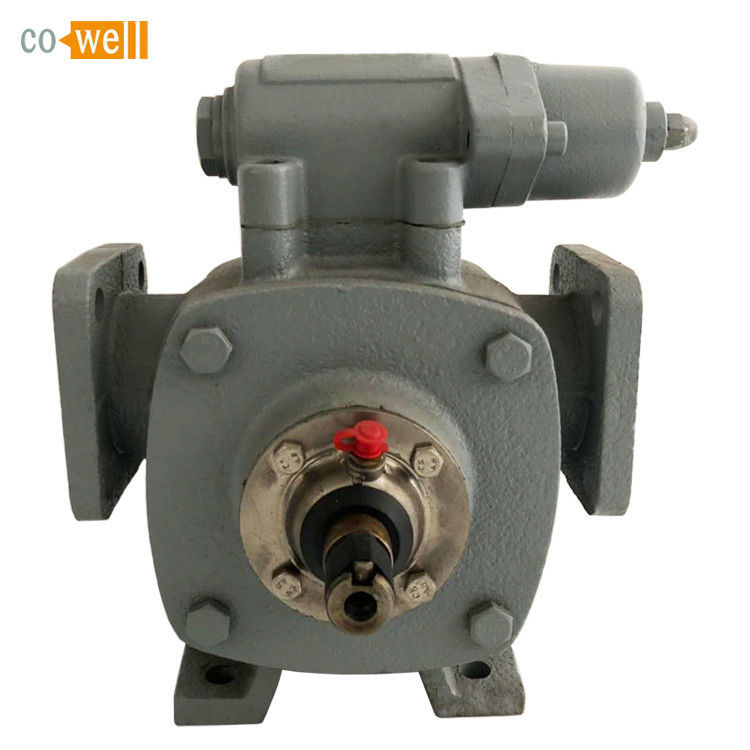

Sub Series Vane Pump

Description

SUB series pump is positive displacement vane pump, applied to transfer gasoline, kerosene, diesel and other light oil, used to load & unload in stock terminal, also on oil tank trucks and mobile fuel unit.

Advantage

An excellent self-priming performance, vacuum up to 0.095Mpa, instead of vacuum pump to clean the tank invessel, truck etc
To transport gas-liquid two-phase, up to 50%, completely solve air lock, cavitation.
Sliding vane design provides sustained performance and trouble free operation, high reliability from excessive.

Application

Fuel Oil Delivery Truck
Fleet Refueling
Aviation Refuelers
Loading & Unloading in Stock Terminal
Transport of Petro, Gasoline, Diesel, Kerosene & many more

Technical Specification

Model	SUB-40	SUB-50	SUB-80
Inlet & Outlet	40mm	50mm	80mm
Flow Rate	180L/Min	250L/Min	500L/Min
Vacuum	0.06MPa	0.06MPa	0.06MPa
Speed	960RPM	960RPM	960RPM
Power	1.5KW	2.2KW	4KW
