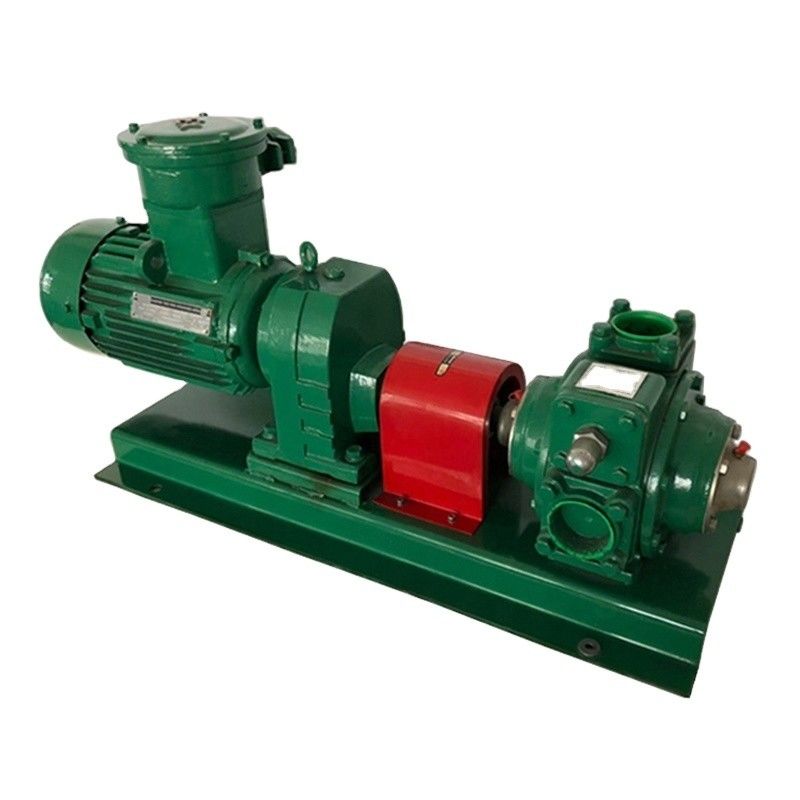

YB Series Rotary Vane Pump With Coupling Drive Ex-Proof Motor

YB Series Rotary Vane Pump With Coupling Drive Ex-Proof Motor

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: IEC,CNEX

Model Number: YB Series

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

YB Series Rotary Vane Pump

,

YB Rotary Vane Pump

,

YB Series Vane Pump

Size:
2'' 2.5"3'' 4''
Flow Range:
300-1900L/Min
Pressure:
175PSI
Usage:
Petroleum, Diesel, Lube Oil, Fuel Oil, Fleet Refueling
Power:
2.2KW-1900L/Min
Size:
2'' 2.5"3'' 4''
Flow Range:
300-1900L/Min
Pressure:
175PSI
Usage:
Petroleum, Diesel, Lube Oil, Fuel Oil, Fleet Refueling
Power:
2.2KW-1900L/Min
Description

YB Series Rotary Vane Pump with Coupling Drive Ex-proof Motor





Main Features



YB series Self-priming rotary vane pump with internal by-pass valve.The pumps use a rotor with sliding vanes to draw the liquid. The material of construction is nodular iron with sliding vanes built in a special self lubricating material. Due to its efficiency, the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps. The pumps are capable of higher flow-rates at lower number of revolutions than other designs. YB-65 Vane Pump, Cast Iron & Stainless Steel Material available.





Advantage



  • Durable pumps for fast and quiet operation.
  • Sliding vane design provides sustained performance and trouble free operation, high reliability.
  • Adjustable relief valve protects pump from excessive pressure.
  • T-type strainers are available to protect pumping system from damage caused by welding slag and other matter inthe piping and tanks.





Flow Rate



Model

Speed



Flow Rate

Size

650RPM 600RPM 550RPM 500RPM 450RPM 400RPM
G/min L/min G/min L/min G/min L/min G/min L/min G/min L/min G/min L/min
YB-50 50mm/2 " 80 300 72 270 64 240 56 210 48 180 40 150
YB-65 65mm/2 1/2" 132 500 123 465 114 430 103 390 93 350 82 310
YB-80 80mm/3 " 265 1000 243 920 222 840 200 760 180 680 160 600
YB-100 100mm/4 "             505 1900     405 1530





Maximum Operating Limit


Model Nominal Flowrate Rated Speed Viscosity Differential Pressure Working Pressure Temperature Power
GPM LPM RPM SSU Cp PSI Bar PSI Bar 0F HP KW
YB-50 80 300 640 20,000 4,250 125 8.6 175 12.1 300 149 3 2.2
YB-65 157 594 640 20,000 4,250 125 8.6 175 12.1 300 149 5 4
YB-80 270 1,022 640 20,000 4,250 125 8.6 175 12.1 300 149 10 7.5
YB-100 505 1900 500 20,000 4,250 125 8.6 175 12.1 300 149 25 18.5



Construction



YB Series Rotary Vane Pump With Coupling Drive Ex-Proof Motor 0



Application


  • Fuel oil delivery truck
  • Fleet refueling
  • Lube oil
  • Aviation refuelers
  • Transport of Petro Chemicals, gasoline, biofuels,
  • Solvents and many more.



Installation



The pumps are widely used on mobile applications or fixed installations. With cardan shafts or hydraulic motor the pumps can be installed on any kind of tank truck. Also they are coupled to electric or diesel engine on metal bases to be used either on terminals, heavy duty dispensers, pumping/metering skids, mobile transfer units. Equipped with Teflon seals, the pumps can also be used on a wide variety of solvents in the petrochemical industry.
