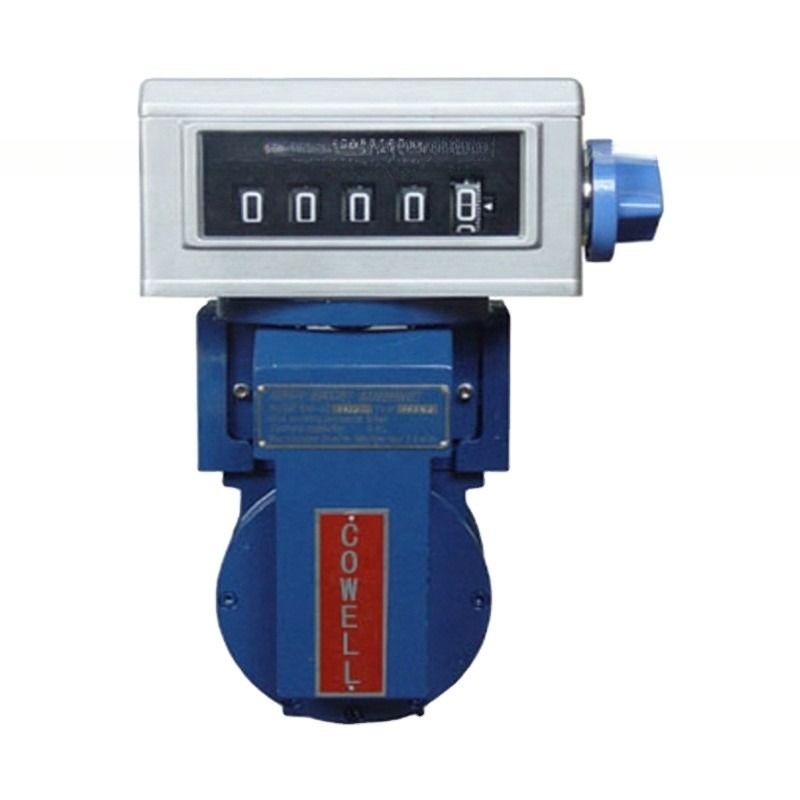

SM-50 Positive Displacement Flow Meter

Name: SM-50 Positive Displacement Flow Meter
Brand: COWELL
SKU: SM-50-1
Rating: 4.6 (177 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: SM-50-1

Payment & Shipping Terms

Packaging Details: Hard Carton

Delivery Time: 7-15 Working Days

Payment Terms: L/C, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            SM-50 Positive Displacement Flow Meter, SM-50 displacement type flow meter, SM-50 pd flow meter


Customized Support:	OEM, ODM, OBM	Diameter:	50mm/2''
Flow Rate:	40-400L/Min	Accurate:	+-0.2%
Repeatability:	≤0.05%	Max. Operation Pressuer:	8Bar/120PSI
Application:	Automotive Industry, Biofuel Industry, Industrial Utilities, Pharmaceutical Industry, Positive Displacement Vane Flow Meter

Customized Support:	OEM, ODM, OBM
Diameter:	50mm/2''
Flow Rate:	40-400L/Min
Accurate:	+-0.2%
Repeatability:	≤0.05%
Max. Operation Pressuer:	8Bar/120PSI
Application:	Automotive Industry, Biofuel Industry, Industrial Utilities, Pharmaceutical Industry, Positive Displacement Vane Flow Meter

Description

SM-50 Positive Displacement Flow Meter

Characteristic

Stepless adjusting mechanism allows a micro adjustment of the meter
Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation
Low head loss
Simple construction : Rotor - blades for easy and low maintenance cost
Wearing compensation :To maintain a good accuracy all along the years
Meter also for viscous products : up to 800 Cst.

Material

Manifold: Steel or Aluminium
Body: Ni-resist Cast Iron
Covers: Steel
Rotor: Aluminium
Baldes: Carbon
Bearings: Stainless Steel
Seals/ gaskets: Viton, Buna”N”

Application

Oil company: refineries, oil depots, gas station and tank trucks distribution
Airports: aircraft refuellers
Army: depot reception or loading trucks
Administration (railway companies, public transport)
Ports: Boats/barges
Private oil transport companies

Technical Specification
Model	SM-50	SM-80
Size	50mm/2"	80mm/3"
Volume/Rev.	0.4L/0.08US Gallon	2.27L/0.5US Gallon
Max.Flow Range	24m³/h or 400L/Min or 105US Gallon	80m³/h or 1333L/Min or 360US Gallon
Min.Flow Range	2.4m³/h or 40L/Min or 10.5US Gallon	8m³/h or 133.3L/Min or 36US Gallon
Max.Pressure	8Bar/120PSI/8.3Kg/cm³	10Bar/150PSI/10.5Kg/cm³
Accuracy	±0.2%
Repeatability	≤0.05%
Working Temp.	-40℃~+60℃
Max.Viscosity	800Cps~3850SSU
