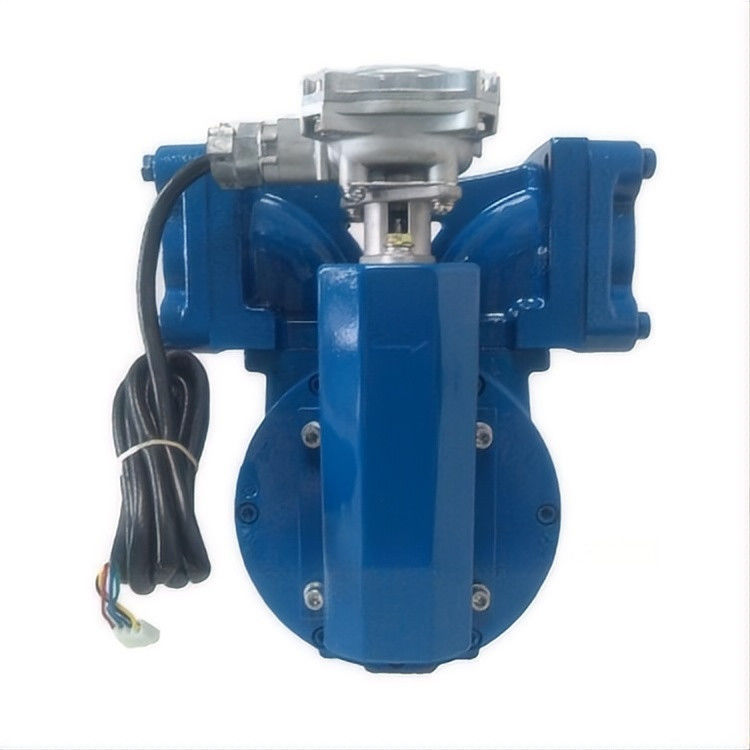

SM-80-P-1 Positive Displacement Flow Meter With Pulser

SM-80-P-1 Positive Displacement Flow Meter With Pulser

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: SM-80-P-1

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 7-15 Working days

Payment Terms: T/T, L/C

Get Best Price
Contact Now
Specifications
Highlight:

SM-80-P-1 Positive Displacement Flow Meter

,

Pulser Positive Displacement Flow Meter

,

SM-80-P-1 pd meters

Customized Support:
OEM, ODM, OBM
Diameter:
80mm/3''
Flow Rate:
133-1333L/Min
Accurate:
+-0.2%
Operational Pressure:
8Bar/120PSI
Repeatibility:
≤0.05%
Application:
Automotive Industry, Biofuel Industry, Industrial Utilities, Pharmaceutical Industry, Positive Displacement Vane Flow Meter
Customized Support:
OEM, ODM, OBM
Diameter:
80mm/3''
Flow Rate:
133-1333L/Min
Accurate:
+-0.2%
Operational Pressure:
8Bar/120PSI
Repeatibility:
≤0.05%
Application:
Automotive Industry, Biofuel Industry, Industrial Utilities, Pharmaceutical Industry, Positive Displacement Vane Flow Meter
Description
SM-80-P-1 Positive Displacement Flow Meter with Pulser

Characteristic



  • Stepless adjusting mechanism allows a micro adjustment of the meter
  • Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation
  • Low head loss
  • Simple construction : Rotor - blades for easy and low maintenance cost
  • Wearing compensation :To maintain a good accuracy all along the years
  • Meter also for viscous products : up to 800 Cst.





Material


Manifold: Steel or Aluminium
Body: Ni-resist Cast Iron
Covers: Steel
Rotor: Aluminium
Baldes: Carbon
Bearings: Stainless Steel
Seals/ gaskets: Viton, Buna”N”





Application



  • Oil company: refineries, oil depots, gas station and tank trucks distribution
  • Airports: aircraft refuellers
  • Army: depot reception or loading trucks
  • Administration (railway companies, public transport)
  • Ports: Boats/barges
  • Private oil transport companies



Technical Specification
Model SM-50 SM-80
Size 50mm/2" 80mm/3"
Volume/Rev. 0.4L/0.08US Gallon 2.27L/0.5US Gallon
Max.Flow Range 24m³/h or 400L/Min or 105US Gallon 80m³/h or 1333L/Min or 360US Gallon
Min.Flow Range 2.4m³/h or 40L/Min or 10.5US Gallon 8m³/h or 133.3L/Min or 36US Gallon
Max.Pressure 8Bar/120PSI/8.3Kg/cm³ 10Bar/150PSI/10.5Kg/cm³
Accuracy ±0.2%
Repeatability ≤0.05%
Working Temp. -40℃~+60℃
Max.Viscosity 800Cps~3850SSU





Construction



SM-80-P-1 Positive Displacement Flow Meter With Pulser 0

Flexible Installation

SM-80-P-1 Positive Displacement Flow Meter With Pulser 1
