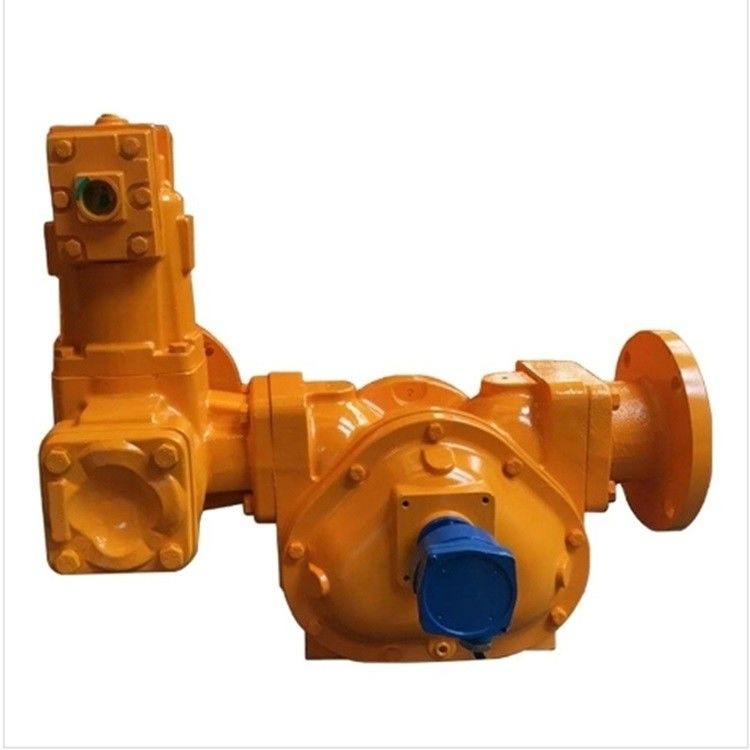

M-100-P-1 Bulk Flow Pulser Flow Meter

M-100-P-1 Bulk Flow Pulser Flow Meter

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: CE

Model Number: M-100-P-1

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 5-15 Working days

Get Best Price
Contact Now
Specifications
Highlight:

pulser flow meter m-100-p-1

,

m-100-p-1 displacement flow meter

,

bulk flow pulser flow meter

Warranty:
2 Years
Diameter:
100mm/4"
Flow Rate:
130-1300L/Min Or 170-1700L/Min
Max.Pressure:
10.5Bar
Accuracy:
±0.2%
Viscosity:
30SSU-1,500,000SSU
Measurement:
Liter Or Gallon
Material:
Aluminum
Warranty:
2 Years
Diameter:
100mm/4"
Flow Rate:
130-1300L/Min Or 170-1700L/Min
Max.Pressure:
10.5Bar
Accuracy:
±0.2%
Viscosity:
30SSU-1,500,000SSU
Measurement:
Liter Or Gallon
Material:
Aluminum
Description
M-100-P-1 Bulk Flow Pulser Flow Meter



Characteristics



  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction





Technical Data



Model M-40-1 M-50-1 M-50H-1 M-80-1 M-80H-1 M-100-1 M-100H-1 M-150-1 M-150H-1
Size 40mm /1.5" 50mm / 2 " 80mm / 3 " 100mm / 4 " 150mm / 6 "
Flow Range
(L/Min)
25-250 38-380 55-550 75-750 115-1150 130-1300 170-1700 225-2250 300-3000
Volume/Rev. 0.309L 0.681L 1.839L 5.102L 9.507L
Max.Pressure 10Bar/150PSI 25Bar/350PSI
Accuracy ±0.2%
Repeatability ≤0.05%
Standard Measurement Liter / US Gallon/IMP Gallon
Viscosity 30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.







Constructure



M-40-KX-1  Mechanical Preset Positive Displacement Flow Meter 0





M-40-KX-1  Mechanical Preset Positive Displacement Flow Meter 1





M-40-KX-1  Mechanical Preset Positive Displacement Flow Meter 2



M-40-KX-1  Mechanical Preset Positive Displacement Flow Meter 3





M-40-KX-1  Mechanical Preset Positive Displacement Flow Meter 4
